Other features
| Channels quantity |
13 |
| Networking features |
Fast Ethernet |
Ports & interfaces
| Host interface |
USB |
| Internal |
N |
| USB ports quantity |
1 |
Networking
| Frequency band |
2.412 - 2.472 GHz |
Performance
| Receiver sensitivity |
- 11b 11Mpbs :-76dBm\n- 11g 54Mpbs :-65dBm\n- 11n-HT20 72.22Mpbs :-62dBm\n- 11n-HT40 150Mpbs :-59dBm |
Bandwidth
| Supported data transfer rates |
150, 72.22, 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 Mbps |
Additionally
| Wireless technologies |
Wireless |
| Ethernet LAN connection |
N |
| Wireless connections |
Y |
| Transfer rate (Mbps) |
150 Mbit/s |
| Output power |
20 - 23dBm +/-1 |

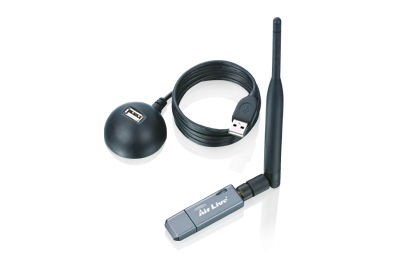

WN-360USB - Wireless 11N USB Dongle, 802.11 b/g/n, 150Mbps, Dipole antenna (5dBi)
The AirLive WN-360USB is a 802.11n USB Adapter with 2 dBi detachable antenna. It is designed to allow your PC to reach the longest distance possible.
<b>Enjoy extreme Wireless transfer speed</b>
AirLive WN-360USB is a 150Mbps simple Wireless N USB dongle that can deliver extreme wireless speed in your home or Office. Although very small and portable, this wireless dongle can delivers up to 3x faster speeds than Wireless-G when connected to WN-300R. You can share a high speed Internet connection, IP Camera, photos, files, music, videos, printers, to your storage device or other computer.
<b>Greater Distance of Wireless Coverage</b>
With transmission power of up to 23dBm*, WN-360USB offers long distance wireless coverage. By
using 2dBi antenna which is included in WN-360USB, it can reach up to 90Mbps, in actual throughput, under normal indoor usage. For even more demanding application, the antenna can be replaced (using standard R-SMA connector) to give you even greater flexibility and options.
<b>Software AP Function</b>
In addition to the WLAN USB adapter function, the WN-360USB can also works as an Access Point.
The Software AP function allows the WN-360USB to work as an AP when connected to your PC. The
drivers for Windows and Linux, Mac are included.
<b>Full Compatibility with Turbo-G and Wireless-G</b>
The AirLive Wireless-N family is fully compatible with Turbo-G and Wireless-G devices. In fact, they
will run at full Turbo speed when linking with Turbo-G products. Therefore, you can get the maximum
performance out of your legacy equipments. The AirLive Wireless-N technology protects your current
investment while making your wireless network ready for the future.
<b>Extensive Security</b>
In addition to the standard WEP encryption function, WL-360USB also supports WPA and the latest
802.11i standard. It provides the extra security you need for your wireless network.
*Up to 20dBm wireless power for Europe only.
