Motherboard
| Supported processor frequency (max) |
1.6 GHz |
Other features
| Number of SATA connectors |
3 |
| Number of Parallel ATA connectors |
1 |
| Number of processors installed |
1 |
| Processor system buses supported |
1066, 1333, 1600 MHz |
| Drive bays |
2 x 3.5", 1 x 5.25" |
| Expansion slots |
1 x PCI,\n1 x PCI-e x 16 |
Storage
| Number of storage drives supported |
4 |
| Compatible memory cards |
MMC, SD |
Memory
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Maximum internal memory |
8 GB |
Audio
| Audio system |
Realtek ALC1200 |
Ports & interfaces
| PS/2 ports quantity |
2 |
| Firewire (IEEE 1394) ports |
1 |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| eSATA ports quantity |
1 |
Networking
| Networking features |
Atheroes L1E Gigabit Ethernet |
Additionally
| Chipset |
Intel P43 Express |
| Ethernet LAN (RJ-45) ports quantity |
1 |

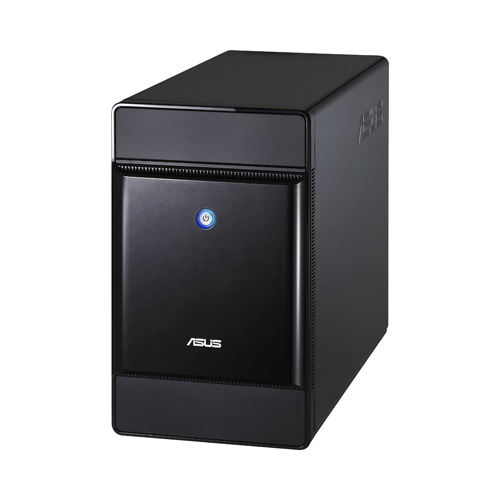

T3-P5P43 - Socket LGA 775, 1600/1333/1066/800MHz FSB, 4 x DDR3 1333/DDR2 1066, 1 x PCI, 1 x PCI-e x 16, Gigabit Ethernet, 300W (PFC)
Speed performance with solid quality
LGA775 Intel® Core™2 Processor Ready
T3-P5P43 barebone supports the latest Intel® Core™2 processors in LGA775 package. It also can support Intel® 45nm Multi-Core CPU. With new Intel® Core™ microarchitecture technology and 1600/1333/1066/800MHz FSB, Intel® Core™2 processor is one of the most powerful and energy efficient CPU in the world.
PCIe 2.0
Double Speed; Double Bandwidth
T3-P5P43 barebone supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance.
Dual-Channel DDR3 1333 / DDR2 1066
T3-P5P43 barebone supports DDR3 1333/1066 MHz or DDR2 memory 1066/800/667 MHz to meet the higher bandwidth requirements of the latest operation system, 3D graphics, multimedia, and Internet applications. The dual-channel DDR3/DDR2 architecture doubles the bandwidth of your system memory to boost system performance.
Powerful media Performance
T3-P5P43 supports FSB 1600 MHz of Intel Quad-core CPU, and builds 8 Channel Codec inside, not only increase your working efficiency, but also meet your nitpicking demand for sound at the same time.
Considerate Sliding Door Design
Unique sliding panel, designed by ASUS professional ID teams, hides the front I/O gracefully and leads PC in the design direction of new generation with fashion and succinct style
Exciting Gaming Experience
The compact size of T3-P5P43 can support powerful VGA card to enjoy extreme gaming and joyful multimedia.
Swivel Chassis Design and Clean Cable Management
Because of the flip-over chassis design & nice cable management, it’s very easy to install and repair the PC
Smart PCB Module Design
Integrated several I/O parts into one PCB card and the PCB card can be slotted into the main board without any connection by cables. It’s easy for repairing and testing
ASUS Q-Fan Technology
Q-Fan automatically adjusts CPU fan speed based on system loading and temperature to ensure a quiet and distraction-free working environment.
