Ports & interfaces
| Parallel ports quantity |
1 |
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Other features
| Number of SATA connectors |
4 |
| Number of Parallel ATA connectors |
1 |
| Expansion slots |
2 x PCI |
Graphics
| Maximum graphics adapter memory |
1849 MB |
Expansion slots
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
1 |
Memory
| Maximum internal memory |
8 GB |
Networking
| Networking features |
Gigabit Ethernet |
Additionally
| Chipset |
Intel G41 Express |
| Graphics |
GMA X4500 |
| Ethernet LAN (RJ-45) ports quantity |
1 |

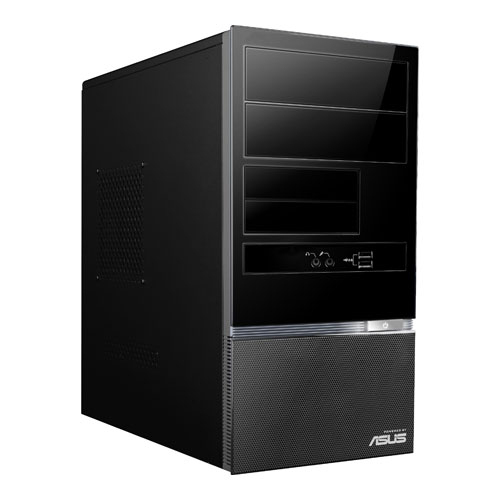

V6-P5G41E - Intel CPU Socket LGA 775, Intel G41/Intel ICH7, 2 x DIMM DR3-1066/1333 max. 8G, 2 x PCI, 1 x PCI-e x 1, 1 x PCI-e x 16, Intel® GMA X4500, 1 x ATA 133, 4 x SATA, Gigabit Ethernet, 380W (PFC)
High performance with graceful design
Intel® G41 Chipset
The Intel® G41 Express Chipset is designed to support dual-channel DDR3 1066/800 architecture, 1333/1066/800 Front Side Bus (FSB), and mutli-core CPUs. It especially includes Intel® Fast memory bandwidth and reduces the latency of the memory accesses.
Dual-Channel DDR3 1066/800 support
V6-P5G41E supports DDR3 memory that features data transfer rates of 1066/800 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance.
Support Microsoft DirectX10
It redefines gaming, multimedia and business experience, providing more vivid scene and also delivers exceptional performance with advanced hardware supports.
Gigabit Lan
The onboard LAN controller is a highly integrated Gb LAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems.
SATA 3Gb/s
V6-P5G41E supports hard drives based on the Serial ATA (SATA) 3Gb/s storage specifications, delivering enhanced scalability and doubling the bus bandwidth for high-speed data saving and retrieval.
ASUS Express Gate - 0 to Internet in Seconds!
Express Gate™ is an ASUS exclusive OS that provides you with quick access to the Internet and key applications before entering Windows®.
ASUS EPU - System Level Energy Saving
The new ASUS EPU - the world’s first power saving engine, has been upgraded to a new six engine version, which provides total system power savings by detecting current PC loadings and intelligently moderating power in real-time. With auto phase switching for components (which includes the CPU, VGA card / integrated GPU, memory, chipset, hard drives and CPU cooler / system fans), the EPU automatically provides the most appropriate power usage via intelligent acceleration to save power and money.
