Other features
| Channels quantity |
13 |
| Outdoor range |
300m |
| Networking features |
Fast Ethernet |
| Compliance industry standards |
IEEE 802.11b/g/n |
| Radio transmit power |
15 ± 1 dBm |
| Link/Act LED |
Y |
| Ports quantity |
1 |
Antenna
| Antenna connector type |
R-SMA |
Networking
| Frequency band |
2.412 - 2.472 GHz |
| Chipset |
Realtek 8192SE |
System requirements
| Minimum RAM |
512 MB |
| Minimum processor |
Intel Pentium III 600Mhz |
| Minimum hard disk space |
45 MB |
| Optical drive required |
Y |
Power
| RX power consumption |
380 mA |
| TX power consumption |
220 mA |
Protocols
| Media access protocol |
CSMA/CA (ACK) |
Ports & interfaces
| Host interface |
PCI-E |
| Internal |
Y |
Additionally
| Wireless connections |
Y |
| Transfer rate (Mbps) |
150 Mbit/s |
| Ethernet LAN connection |
Y |
| Indoors max range |
100m |
| Wireless technologies |
Wireless |

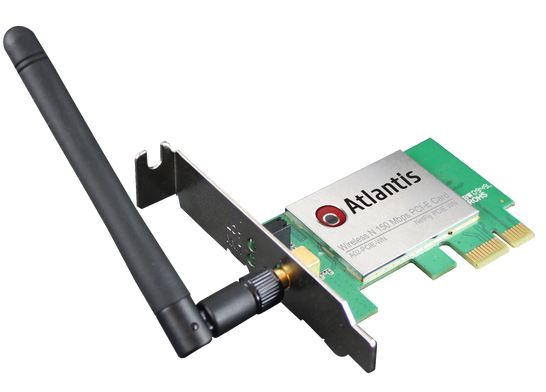

Wireless N 150Mbps PCI Express Adapter, IEEE 802.11b/g/n, WEP/WPA/WPA2, WPS
The NetFly is a high-efficiency wireless LAN Card for wireless networking at home, in office or in public places. With the Adapter, you can roam between conference room and office without being disconnected the LAN cables; in addition, sharing files and printers can be easy tasks. The NetFly is available to Microsoft Windows operating systems (Windows? XP/2000/VISTA/7, Linux) and can be integrated into networking with either Ad-hoc mode (computer-to-computer, without an Access Point), Infrastructure mode (computer-to-access point, an Access Point is required). Compliance with IEEE 802.11n (backward compatible with 802.11g/b) specifications. Delivers up to 6x faster speeds and 2x farther range1 than 802.11g. The device offers quick and easy access among wired network and wireless network. The NetFly also supports WPA/WPA2 security, it increases the level of data protection and access control for Wireless LAN. PCI Express technology offers several advantages over the common PCI interface, such as a higher speeds between the adapter's board and the host computer and in addition has lower power requirements.
