Video
Playback resolutions supported |
NTSC: 352 x 240 (CIF), 720x240 (Half-D1), 720 x 480 (D1) |
Ports & interfaces
HDMI ports quantity |
1 |
VGA (D-Sub) output ports |
1 |
BNC output ports |
2 |
RS-485 ports |
1 |
BNC input ports |
16 |
Additionally
RS-232 port |
1 |
Ethernet LAN (RJ-45) ports quantity |
2 |
USB, 1x - RS232, 1x - RS485, 250 W
<b>IP Performance Matters</b>

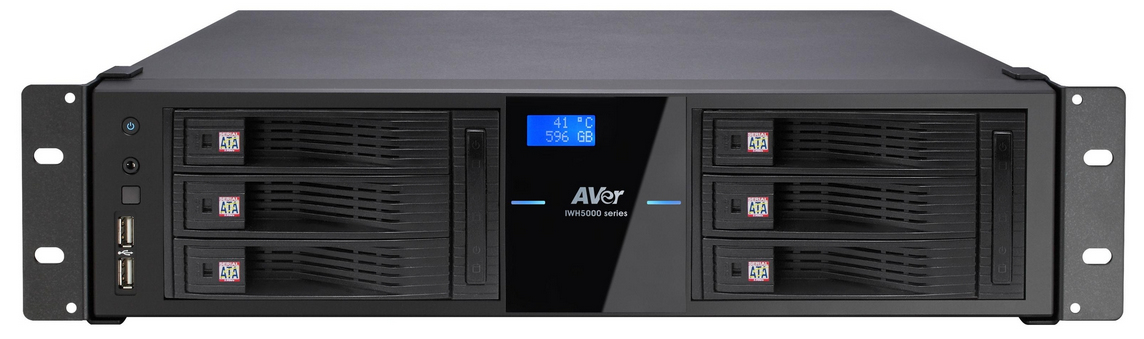

With a blazing fast Intel Core i7 processor in a 64-bit operating system, the IWH5416+16 is made for IP performance. Capable of handling up to 80MPs, the IWH5416+16 is designed to process massive amounts of video with extreme power and precision to deliver every meticulous surveillance detail – no jumps, bumps or lags.
<b>Software Matters</b>
Seamless network integration, intuitive video intelligence, powerful Visual and Intelligent search features, comprehensive remote management and more, the IWH5416+16 is built for power, precision and performance.
<b>POS Matters</b>
When deploying surveillance in retail facilities, loss prevention becomes critical. When cash registers are part of the every day work week, you will be happy to know that the IWH5416+16 is compatible with most commonly used POS systems. Not only does this smart system actively associate transaction data with corresponding video images, but it also outputs alerts for suspicious events based on your assigned keywords.
<b>Response-time Matters</b>
With built-in event alarms, the IWH5416+16 allows you to easily isolate and manage unfolding situations. From real-time notifications pushed to the monitoring DVR, to relay protocols (locking gates, etc.) emails, warning sounds and more, the system stays vigilant so you don’t have to. Even more, the IWH5416+16 is integrated with a S.M.A.R.T. monitoring system that anticipates hard disk failure so users can proactively replace compromised drives and avoid potential data loss.
