Performance
| Hot-Plug support |
SFP |
| Buffer size per port |
1.17 MB |
Optical fiber
| Fiber type |
Multi-mode |
| Transmission distance (max) |
100 km |
| Wavelength |
1550 nm |
Ports & interfaces
| SFP module slots quantity |
24 |
Certificates
| Safety |
UL 1950, CSA C22.2 No.950, EN 60950, EN 60825-1 IEC 60950, IEC 60825-1, TS 001, CE marking, AS/NZS 3260, 21CFR1040 |
| Electromagnetic compatibility |
FCC Part 15 (CFR 47) Class A, VCCI, EN55022, EN55024, CISPR 22, CE marking, AS/NZS 3548 |
Management features
| Quality of Service (QoS) support |
Y |
Security
| Access Control List (ACL) |
Y |
Operational conditions
| Operating altitude |
-60 - 4000 m |

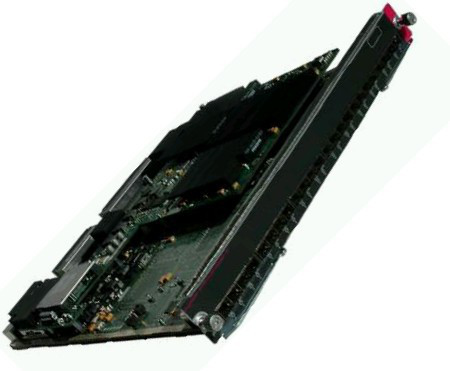

Module GE 24xSFP for Catalyst 6500
Designed for high performance Enterprise and Service Provider distribution, core layers, data-center, Web-hosting and Metro Ethernet applications, CEF720 mixed media interface modules provide line-rate gigabit Ethernet forwarding using twisted pair or fiber optic cabling with the following operational advantages:
Backplane connection-Connects to the switch fabric using dual full duplex 20 Gbps switch fabric channels (40 Gbps total), a single 20 Gbps channel is suppported.
Chassis/slot support-Can occupy any slot in Cisco Catalyst 6506, 6509, and 6509-NEB-A and slots 9 through 13 in Catalyst 6513. This module is supported in all slots of the Catalyst 6513.
Supervisor engine-Supported by all versions of Supervisor Engine 720
Base forwarding mode and performance-Uses the central CEF engine located on the supervisor engine to forward packets up to 30 Mpps per system in its base configuration.
Distributed forwarding upgrade option and performance-When equipped with the optional field-upgradeable dCEF forwarding daughter cards, the interface module delivers optimal performance, up to a sustained 48 Mpps per slot.
Optics-Support hot-pluggable modular small form-factor pluggable (SFP).
