Performance
| Data transfer rate (max) |
2.5 Gbit/s |
| Hot-Plug support |
Y |
System requirements
| Mac operating systems supported |
Y |
Ports & interfaces
| Internal FireWire ports quantity |
1 |
| Host interface |
PCIe |
| Internal |
Y |
| Firewire (IEEE 1394) ports |
3 |

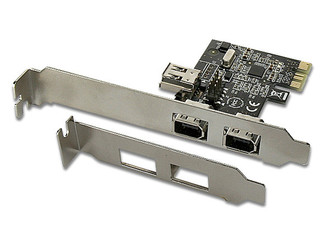

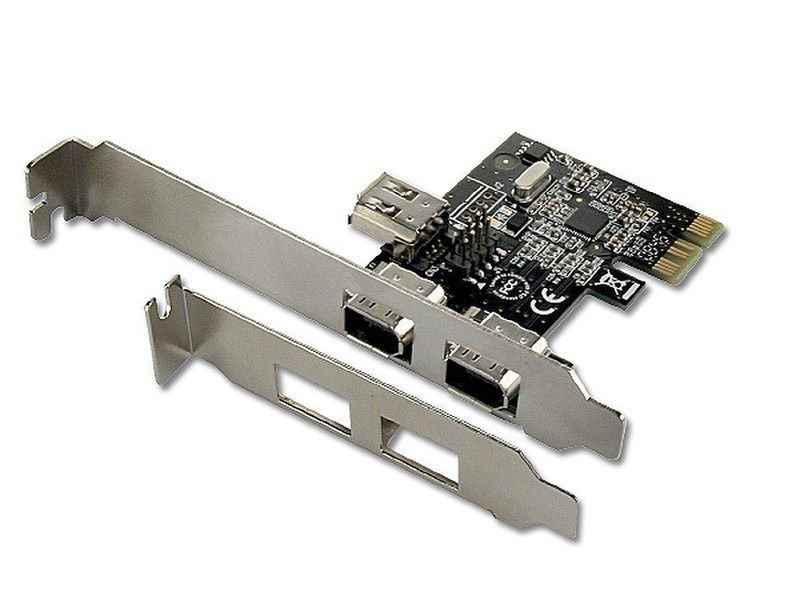

PCI Express IEEE 1394A 2+1 Ports Card
- This PCI-Express IEEE 1394a firewire controller card is designed based on the IEEE standard 1394-1995 & 1394A-2000 specifications. It can provide data transfer rate up to 400Mbps therefore it is an ideal platform for connecting external high performance devices such as the external memory storages. It is also perfect for video / audio capturing and editing. Furthermore, this controller card can be configured so that two or more computers to be connected together as a local area network via the IEEE 1394A connection.
- Complies with PCI-Express revision 1.1 with data transfer rate up to 2.5Gbps
- Complies with PCI power management interface specification 1.1
- Complies with IEEE 1394 OpenHCI specification v1.0 & 1.1
- Complies with IEEE 1394-1995 & 1394A-2000 standard
- Supports transfer rate of 400 / 200 / 100 Mbps
- Fully interoperable with FireWireTM & i.LINKTM implementation of IEEE 1394 standard
- Fully plug & play and hot plug supported
- Driverless for Windows 98SE, ME, 2000, XP 32 / 64-bit, Server 2003 32 / 64-bit, Vista 32 / 64-bit, Server2008 32 / 64-bit & Mac OS. For Linux, you will need to install the Linux driver manually
- Included: PCI-Express IEEE 1394A firewire controller card x 1, Fan-out cable x 1, User manual x 1, Driver CD x 1
- Compliant with CE, FCC, N13059 & RoHS.
