Other features
| Keyboard function keys |
12 |
| Keyboard type |
US |
| Built-in subwoofer |
N |
| BIOS password |
Y |
| Audio system direct sound |
Y |
| Built-in microphone |
N |
| Audio system full duplex |
Y |
| TV tuner integrated |
N |
| Supported hard disk drive interfaces |
Serial ATA |
| Built-in camera |
N |
| Dolby technologies |
Dolby Digital 5.1 Surround Sound |
Optical drive
| LightScribe |
N |
| Optical drive type |
DVD±RW |
Ports & interfaces
| DVI port |
N |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| DC-in jack |
Y |
Graphics
| On-board graphics adapter |
Y |
| On-board graphics adapter family |
Intel HD Graphics |
| Discrete graphics adapter model |
Not available |
Networking
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Wi-Fi |
Y |
| Bluetooth |
N |
Memory
| Memory clock speed |
1333 MHz |
| Memory slots |
2 |
| Internal memory type |
DDR3-SDRAM |
| Maximum internal memory |
8 GB |
Storage
| Number of storage drives installed |
1 |
| Compatible memory cards |
MMC, MS PRO, SD |
| Card reader integrated |
Y |
Packaging content
| Drivers included |
Y |
| Keyboard supplied |
Y |
| Handheld remote control |
N |
| Full HD |
N |
| Mouse included |
N |
Performance
| Trusted Platform Module (TPM) |
N |
| Audio system |
HD |
Processor special features
| Intel® Turbo Boost Technology |
Y |
Certificates
| Blue Angel certified |
N |
| Energy Star certified |
N |
Additionally
| Chipset |
Intel H61 Express |
| Ethernet LAN connection |
Y |
| System bus data transfer rate |
5 GT/s |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

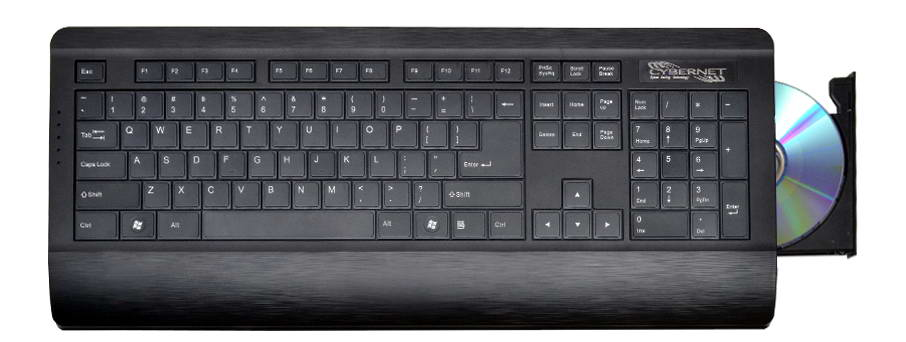

ZPC-H6 Keyboard PC
Intel Core i5 & DDR3 RAM
The most powerful keyboard computer ever built! Powered by the 2nd generation Intel Core i5 CPU and up to 8GB DDR3 memory, the ZPC-H6 is a new breed of keyboard PC without compromise.
Operating System Flexibility
Full support for Windows 8, Windows 7, or XP in 32-bit or 64-bit configurations.
10-Key Numeric Keypad
Great for financial institutions or any other vertical market that routinely uses keypad input.
USB 3.0 ports & SD card reader
High speed USB 3.0 ports enable faster data transfer to external storage devices. Store and read files or images from the SD card reader.
Dual Display Support
The ZPC-H6 supports dual displays in either mirror mode or extended desktop. Connect two LCDs and view multiple sets of data simultaneously to increase productivity.
WiFi b/g/n
The optional 802.11 dual band b/g/n allows for seamless and easy integration into your corporate network; great for those hard-to-wire areas.
