Power
| Maximum input current per phase |
15 A |
| Maximum current |
15 A |
| Input frequency |
50/60 Hz |
| Power protection features |
Overload |
| Nominal input voltage |
120 V |
Operational conditions
| Operating altitude |
0 - 4500 m |
| Non-operating altitude |
0 - 15000 m |
Ports & interfaces
| Power plug |
NEMA 5–15P |
| Serial ports quantity |
1 |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
16 x NEMA 5-15R Outlets, 120VAC, 1 x RJ-45, LCD, 0U

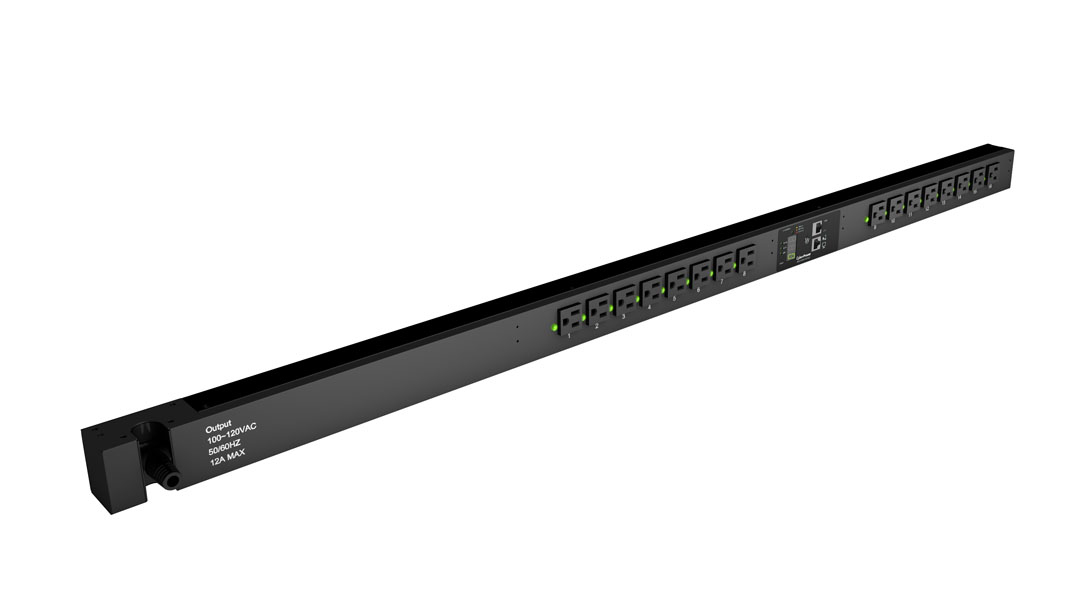

The CyberPower (PDU15SWV16FNET) 16-outlet 0U rack mount switched power distribution unit (PDU) provides 120V 15A output. It distributes power to 16 NEMA 5-15R receptacles from a single NEMA 5-15P plug, with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network using CyberPower Management Console /web browser and the RJ45 Ethernet port for network connection or locally using the LCD controls. Outlets can be turned on, turned off, or recycled on demand or at programmed times to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads.
The front LCD panel provides local control and monitoring of the PDU. Using the LCD controls, outlets can be used to turn on or turn off a single receptacle or multiple receptacles. Load management is accomplished by using the display to measure the electrical current used by connected equipment in amps. The LCD can also display input voltages to assist in diagnosing potential issues with input power. Power being consumed in watts can also be displayed, as well as, the IP address of the network interface for ease of installation.
The CyberPower Management Console offers real-time remote monitoring of PDU vitals as well as controlling outlets for networked clients. You can program outlets to turn on, turn off, or recycle at specified times. In addition to control, you can use Event Logging via a web browser/network connection to review history on power conditions, such as input voltages, load levels, and outlet status. Automatic event notifications via Email or SNMP Trap are sent to designated user when specified power events occur.
Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. A RJ-45 port enables the connection of the optional ENVIROSENSOR environmental sensor for monitoring the heat and humidity in an IT center. It can be mounted either horizontally or vertically, includes a cord retention tray and is UL60950_1 and FCC Class A certified. A three-year warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
