Features
| Dual-band |
Y |
| Standby power consumption |
13 mW |
| Standby power consumption (Wi-Fi) |
35 mW |
| Standby power consumption (Bluetooth) |
21.5 mW |
| USB On-The-Go support |
Y |
Processor
| Processor cores |
2 |
| CPU configuration (max) |
1 |
| Microcontroller frequency |
100 MHz |
| Microcontroller model |
Intel Quark |
| Processor lithography |
22 nm |
| Processor frequency |
500 MHz |
Ports & interfaces
| Bluetooth |
Y |
| USB ports quantity |
1 |
| USB version |
2.0 |
| Wi-Fi |
Y |
Memory
| Flash memory type |
NAND |
| Memory clock speed |
800 MHz |
| Internal memory type |
LPDDR3 |
| Flash memory |
4096 MB |
| Maximum internal memory |
1 GB |
Design
| Product series |
Intel Edison kit |
Additionally
| Ethernet LAN connection |
N |

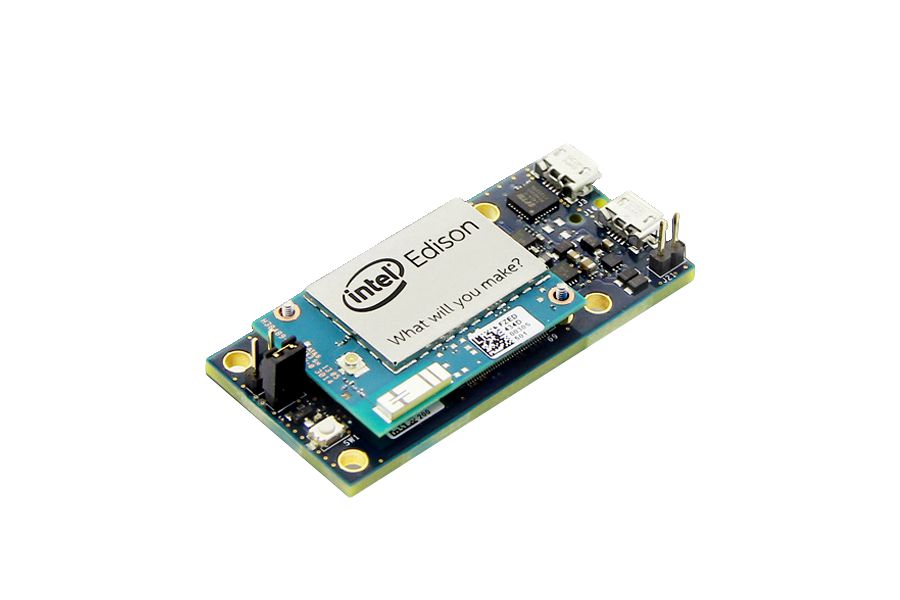

Intel Edison Breakout Kit
The Intel® Edison development platform is the first in a series of low-cost, product-ready, general purpose compute platforms that help lower the barriers to entry for entrepreneurs of all sizes—from pro-makers to consumer electronics and companies working in the Internet of Things (IoT).
Intel® Edison packs a robust set of features into its small size, delivering great performance, durability, and a broad spectrum of I/O and software support. Those versatile features help meet the needs of a wide range of customers.
This breakout kit is designed for non-Arduino users. This breakout board has a minimalistic set of features and is slightly larger than the Edison module.
<b>FEATURES</b>
- Uses a 22nm Intel® SoC that includes a dual core, dual threaded Intel® Atom™ CPU at 500MHz and a 32-bit Intel® Quark™ microcontroller at 100 MHz. It supports 40 GPIOs and includes 1GB LPDDR3, 4 GB EMMC, and dual-band WiFi and BTLE on a module slightly larger than a postage stamp
- The Intel Edison module will initially support development with Arduino* and C/C++, followed by Node.JS, Python, RTOS, and Visual Programming support in the near future
- The Intel Edison module includes a device-to-device and device-to-cloud connectivity framework to enable cross-device communication and a cloud-based, multi-tenant, time-series analytics service
