DFRobot Romeo for Intel Edison Controller (Without Intel Edison)

DFRobot Romeo for Intel Edison Controller (Without Intel Edison)

MPN: DFR0331
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Features

Supported programming language Java, C
Dual-band Y
Operating voltage 5 V
USB powered Y
Motor driver constant current 2x 2A
DC current per I/O pin 10 mA
Peak current 2000 mA
Input voltage (max) 6 - 20 V
USB On-The-Go support Y
Power switch Y

Processor

Processor cores 2
Microcontroller frequency 100 MHz
Microcontroller model Intel Quark
Processor frequency 500 MHz

Ports & interfaces

Frequency range 2.4 - 5 GHz
Bluetooth Y
Number of analog I/O pins 6
Number of digital I/O pins 14
Wi-Fi Y

Additionally

Ethernet LAN connection N

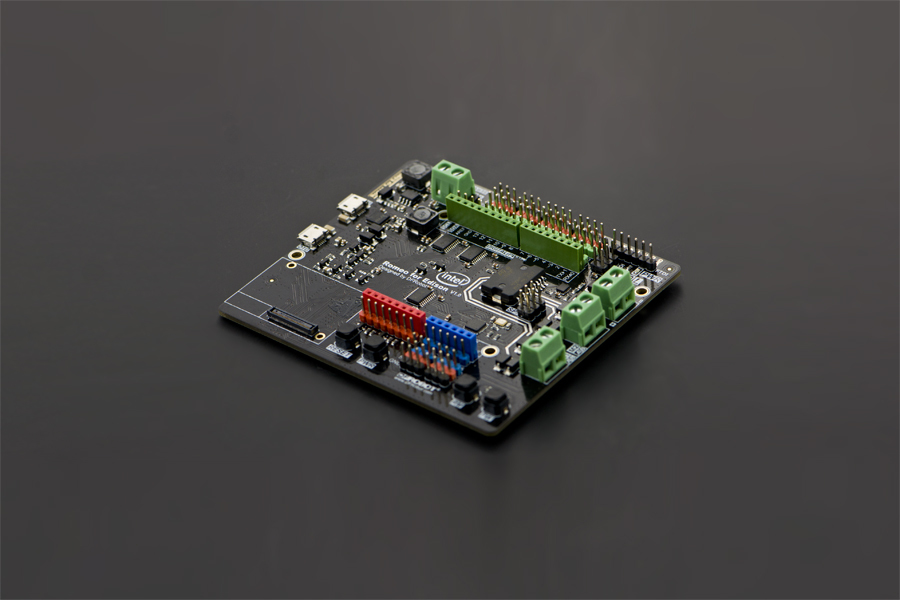

Romeo for Intel Edison Controller (Without Intel Edison) Romeo for Intel® Edison is a multi-purpose, all-in-one development platform based on Intel Edison and Arduino SoC. It is especially designed to be useful for robotics applications. Romeo for Intel® Edison is compatible with Arduino open source platform and Linux, and supports Java and C development environment. Users are able to extend this platform with thousands of existing shields and modules such as switches, sensors, LEDs, servos, motors easily with Romeo for Intel Edison. It can also be used as a standalone communication platform for software like flash, processing, Max/MSP and VVVV. The integrated 2 way DC motor driver and wireless capability allows you to start your project immediately without the need of any additional motor driver or wireless shield. The Romeo for Intel® Edison inherits all functions of the Romeo all-in-one controller and integrates powerful functions the Intel Edison board possesses. You can describe it as a control board specially designed for robotics applications, carrying the powerful gene of Intel® Edison and being compatible with Arduino.
