Storage
| Hard drive size |
2.5 " |
| Hard drive capacity |
160 GB |
| Total storage capacity |
160 GB |
| Card reader integrated |
N |
| Storage media |
HDD |
| Hard drive interface |
Serial ATA |
| Number of hard drives installed |
1 |
Networking
| Cabling technology |
10/100/1000Base-T(X) |
| Wake-on-LAN ready |
Y |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Wi-Fi |
N |
| Bluetooth |
N |
Processor
| Number of processors installed |
1 |
| Processor cache |
0.512 MB |
| Processor lithography |
65 nm |
| Thermal Design Power (TDP) |
65 W |
| Processor codename |
Conroe |
| Processor cache type |
L2 |
| Conflict Free processor |
N |
| FSB Parity |
N |
| Processor front side bus |
800 MHz |
| Number of Processing Die Transistors |
105 M |
| CPU multiplier (bus/core ratio) |
11 |
| Processor operating modes |
64-bit |
| Processor cores |
2 |
| Processor frequency |
2.2 GHz |
| Tcase |
73.3 °C |
| ECC supported by processor |
N |
| Bus type |
FSB |
Ports & interfaces
| DVI port |
N |
| Line-in |
Y |
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Processor special features
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Processor package size |
37.5 mm |
| Processor ARK ID |
35100 |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
N |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Graphics
| On-board graphics adapter |
Y |
| On-board graphics adapter family |
Intel GMA |
| Discrete graphics adapter model |
Not available |
Memory
| Memory layout (slots x size) |
1 x 1 GB |
| Memory slots |
1x DIMM |
| Internal memory type |
DDR2-SDRAM |
| Maximum internal memory |
4 GB |
| Internal memory |
1 GB |
Additionally
| InTru™ 3D Technology |
N |
| Chipset |
Intel G41 |
| Processing die size |
77 mm² |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |

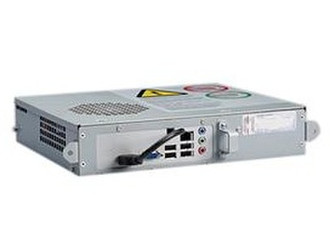

Intel Celeron E1500 (512K Cache, 2.20 GHz, 800 MHz FSB), 1GB DDR2, 160GB HDD, Intel GMA X4500, Gigabit Ethernet, 4 x USB 2.0, 2600 g, Silver
The Elo TouchSystems IDS (Interactive Digital Signage) touch platform enables increased customer engagement and real-time metrics for OOH (out-of-home) environments by adding an exciting new dimension to traditional broadcast digital signage – the power of touch. The IDS solution incorporates three high-performance optional Computer Modules, ECM1, ECM2 and ECM3, that are designed specifically for the Elo Interactive Display Signage (IDS) touch displays and offer maximum flexibility in delivering high quality digital signage functionality to increase customer engagement in OOH environments. The Computer Modules pair with the Elo IDS touch displays to form a professional platform that delivers a range of performance options in a sleek and stylish package. The Computer Modules, are easily installed into the IDS displays providing an integrated system that optimizes media bandwidth and interactivity for the delivery of highly engaging and measurable consumer content. The optional Computer Modules come in three configurations providing a wide range of touch computing needs with a choice of Intel® processors. The ECM1, ECM2 and ECM3 provide a high standard of quality for customer registration stations and check-in points as well as interactive digital signage applications. For average computing needs, the ECM1 comes with the Intel Celeron™ Dual-Core 2.2GHz processor. For high performance computing needs, ECM2 is powered by Intel Core 2 Duo 3.0GHz processor and ECM3 is powered by Intel Core i5 2.5GHz processor
The system is interoperable with content management servers and Web-based consoles for seamless connection with the Internet and applications such as multimedia sharing and electronic point-of-sale. The Computer Modules can support optimal partitioning of locally cached and network stored content, allowing developers to monitor and deploy content via device-to-device or Web connections. Separately, a USB kit is available to enable wireless connectivity to your signage network.
