Hawking Technologies [HWC54D] Hi-Gain Wireless-G Laptop Card 54Mbit/s networking card

Hawking Technologies [HWC54D] Hi-Gain Wireless-G Laptop Card 54Mbit/s networking card

MPN: HWC54D
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Bandwidth

Supported data transfer rates 54/48/36/24/12/11/9/6/5.5/2/1

Other features

Network architecture IEEE 802.11b/802.11g

Performance

Receiver sensitivity 802.11g, PER < 10%:\n54Mbps: -65dBm \n48Mbps: -66dBm\n36Mbps: -70dBm \n24Mbps: -72dBm\n18Mbps: -77dBm \n12Mbps: -79dBm\n9Mbps: -81dBm \n6Mbps: -82dBm\n802.11b, PER < 8%:\n11Mbps: -80dBm\n5.5Mbps: -83dBm\n2Mbps: -86dBm\n1Mbps: -89dBm

Ports & interfaces

Host interface PC Card

Power

TX power consumption 480 mA
RX power consumption 340 mA

Antenna

Antenna type 6dBi Directional

Networking

Modulation DQPSK, QPSK
Frequency band 2.462 GHz

Packaging content

Quick start guide Y

Additionally

Output power 64 QAM - 11dBm/16 QAM - 14dBm/QPSK - 16dBm/BPSK - 17dBm/DBPSK, SQPSK,CCK - 17dBm
Transfer rate (Mbps) 54 Mbit/s
Wireless technologies Wired

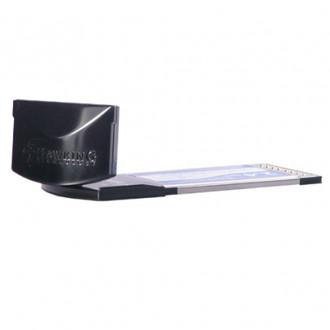

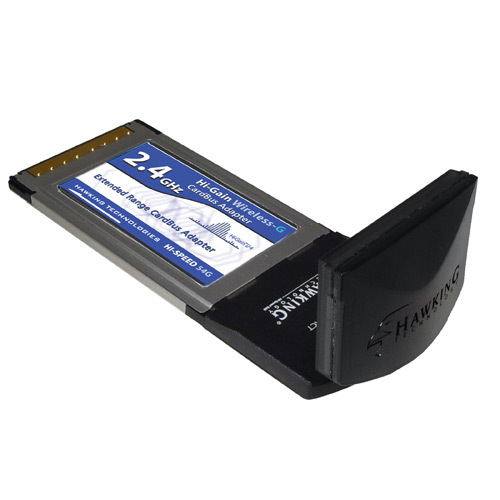

Hi-Gain Wireless-G Laptop Card Hi-Gain Antenna Technology Extends Wireless Range
Hawking Technologies' HWC54D Wireless-G Cardbus PC Card Adapter features the latest in wireless technology. Standard wireless cardbus cards use low power antennas that deliver a circular signal pattern. This type of pattern recieves interference from the metal components within the laptop resulting in a drop in wireless performance and distance. The HWC54D solves this problem with its advanced directional 6 dBi Hi-Gain Antenna that delivers a strong concentrated signal in the direction of the wireless access point to establish a strong wireless link resulting in a significant increase in operating distance (Up to 200%). The Hi-Gain antenna position swivels and folds to make finding an optimal signal easy and simple. When you are not using the card, simply fold the antenna down for compact, safe, easy transport.

Fast and Easy
The Wireless-G Cardbus Card is packed with features, including support for true plug and play (hot swappable), high level security (WPA and WEP Encryption), and low power consumption to preserve your laptop's battery life. The HWC54D uses the latest wireless standard for the fastest connection speeds (Up to 54Mbps - 802.11g). It is also backwards compatible with legacy wireless 802.11b products. Transferring data, audio and even video files wirelessly will be easy and fast. Configuration and installation is simplified to get your wireless network up and running in a matter of minutes!
