Ports & interfaces
| Serial ports quantity |
1 |
| AC outlet types |
C13 coupler, C19 coupler |
| Input connection type |
IEC 60309 60A |
| Output connections |
12 x IEC 60320 C13\n12 x IEC 60320 C19 |
| Power plug |
IEC 60309 |
Design
| Mounting |
Vertical |
| Certification |
WEEE |
| PDU types |
Monitored |
Power
| Maximum current |
83.04 A |
| Load capacity |
17300 VA |
| Nominal input voltage |
208 V |
Ergonomics
| Cable length |
3 m |
| Compatibility |
CLI\nLDAP\nHTTP\nHTTPS\nTelnet/SSH\nIPv4\nIPv6\nSNMPv1\nSNMPv3 |
Additionally
| Colour of product |
Black |
| Ethernet LAN (RJ-45) ports quantity |
1 |

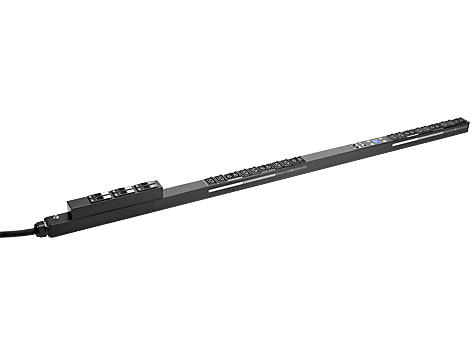

HP 17.3kVA 208 Volt IEC309 60A 3-Phase Watertight Input (12xC13/12xC19) NA/JP Monitored PDU
HP Remote Monitored Power Distribution Units (PDU) provide rack level power monitoring over the network. With billing grade accuracy these PDUs are an excellent choice for data centers wanting to make the most of circuit capacity or for co-location facilities needing to precisely track power usage for billing purposes. The low profile single piece design on these PDU's provides multiple mounting options and ease of access to rear devices for maintenance.
They are designed for HP racks but also work in a large variety of third-party racks as well. They can be installed on either side of the rack with outlets facing the back of the rack for easy access and improved clearance.
For higher power density they can be installed side-by-side on both sides of the rack with the outlets facing in towards the center of the rack. HP Remote Monitored PDUs are available in 1U/0U and vertical form factors in single and 3-phase models and are backed by an HP limited 3-year warranty.
What's new
Two half-height, vertical-mounted PDU models that provide up to 12 IEC C13 outlets with a 10-ft single-phase input cable for improved flexibility during installation.
Features
Accurate, Flexible, Easy-to-Use and Manage Make This the Right PDU for Many Environments
99% billing grade accuracy including energy usage (kW/Hour) improves circuit utilization while providing all the information needed for billing.
Inlet and load segment power monitoring provide the most accurate monitoring available to make the most of every facility power circuit.
Slim design and multiple mounting options allow for mounting on both sides of the rack or mounting multiple PDUs on one side.
Web base interface is easy to configure while settable thresholds provide customization of alerts to match the specific needs and policies of a datacenter.
Local and LDAP authentication provide security whether installed in a single SMB rack or an entire enterprise datacenter.
