Networking
| Compliance industry standards |
IEEE 802.11 a/b/g, IEEE 802.1X PEAP WLAN, IEEE 802.3af PoE |
Operational conditions
| Operating temperature (T-T) |
32 - 122 °F |
| Non-operating relative humidity (non-condensing) |
5 - 95% |
Wireless LAN features
| Frequency band |
CC: 2.412-2.462 (1-11 channels); 5.180-5.240 (36-48 channels); 5.745-5.825 (149-165 channels); . EN: 2.412-2.472 (1-13 channels); 5.180-5.240 (36-48 channels); 5.260-5.320 (52-64 channels); 5.500-5.700 (100-140 (excluding 120, 124, & 128) channels); . RCR: 2.412-2.472 (1-13 channels); 5.180-5.240 (36-48 (excluding 38, 42 & 46) channels); 5.260-5.320 (52-64 channels); 5.500-5.700 (100-140 (excluding 120, 124, & 128) channels); GHz |
| RF exposure |
FCC Bulletin OET-65C; RSS-102; EN 50385 |
Management features
| Supported protocols |
IEEE 802.11a High Speed Physical Layer in the 5 GHz Band; IEEE 802.11b Higher-Speed Physical Layer Extension in the 2.4 GHz Band; IEEE 802.11g Further Higher Data Rate Extension in the 2.4 GHz Band; IEEE 802.11i Medium Access Control (MAC) Security Enhancements\nMobility |
Certificates
| Electromagnetic compatibility |
EN 55022 Class B; EN 60601-1-2; EN 301 489-1; EN 301 489-17; ICES-003 Class B; FCC Part 15, Class B |
| Safety |
UL 2043; UL 60950-1; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1 |
Features
| Electrical enhancements |
IEEE 802.3af PoE compliant or 5 VDC from available AC power supply |
Antenna
| Antenna |
(2) 2 dBi dual-band omnidirectional |
| Antenna gain level (max) |
2 dBi |
| Antenna connector type |
(2) RP-SMA |
Additionally
| Transfer rate (Mbps) |
100 Mbit/s |

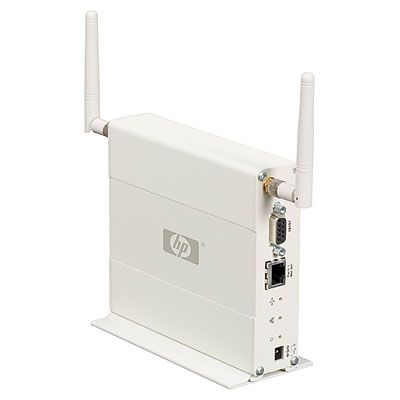

ProCurve M111 Client Bridge
Bridges an Ethernet LAN segment, supporting a wide range of DECnet, IPX, Appletalk and other devices, to 802.11 a/b/g WLAN providing 802.1X PEAP authentication and up to WPA2 security without upgrading the clients.
Enhanced security:
- Configurable Ethernet MAC and protocol filters
- WPA2, WPA, and WEP
- IEEE 802.1X PEAP WLAN authentication
- Hardware-assisted AES and RC4 encryption
Location flexibility:
- 100 mW radio and antenna diversity provide excellent range
- Configurable IEEE 802.11 a/b/g radio with external antenna connectors
- Plenum rated
- Centrally manageable as part of the HP ProCurve Intelligent Mobility system
