Security
| Authentication method |
SPI |
| VPN support |
Y |
| Firewall |
Y |
| MAC address filtering |
N |
Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Other features
| Downstream data rate |
24 Mbit/s |
| Upstream data rate |
1 Mbit/s |
| xDSL connection |
Y |
| Bandwidth |
2.4 GHz |
| Rack mounting |
N |
| Data transfer rate |
150 Mbit/s |
| USB ports quantity |
1 |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Networking
| Management protocols |
TRO69, SNMP |
Protocols
| DHCP server |
Y |
| Supported network protocols |
IPTV, NAT, NAPT, DMZ, VLN, RIPv/v2, IPSec, PPTP |
System requirements
| Minimum RAM |
64 MB |
| Minimum processor |
Intel Pentium 233MHz |
Additionally
| Ethernet LAN connection |
Y |
| Filtering |
MAC, URL, IP |
| Ethernet LAN (RJ-45) ports quantity |
4 |

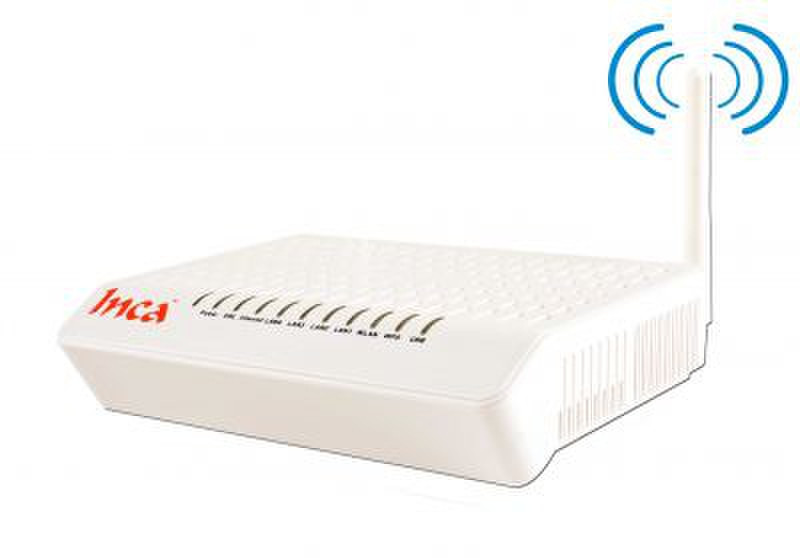

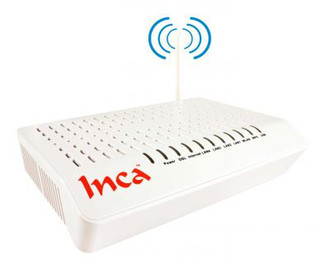

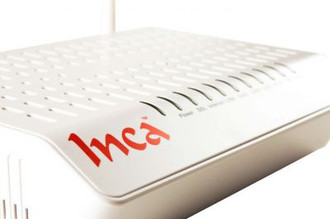

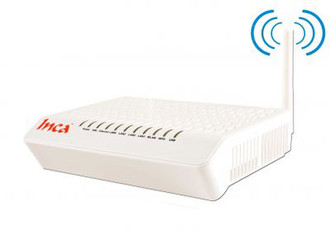

IM-214NX, ADLS2 /2+ Bridge/Modem/Router, Fast Ethernet, IEEE802.11b/g/n, USB
- Web configuration interface for the user-friendly Turkish.
- Up to 150 Mbps high-speed file transfer.
- 4 x 10/100 Mbps auto-MDIX Ethernet ports-MIDI.
- 24 Mbps download and 1 Mbps upload support.
- With a VPN network, remote management features of the expected.
- MIMO enhanced coverage up to 4 times.
- Type the PPPoE connection supports up to 8.
- TRO69 on the Web and SNMP management tool.
- IPTV (TV over IP) via the Internet with TV arbitrary.
- DHCP server, NAT, NAPT, DMZ, VLN, RIPv/v2 router with the advanced features of the expected.
- Virtual private networking support for IPSec and PPTP.
- Standards in line with the 2.4 GHz IEEE802.11b/g/N.
- the Advanced Anti-DOS SPI Firewall with Internet access, MAC, URL and IP address filtering features of the expected.
- 1 USB port with the printer can connect to other computers or USB memory.
- Firewall management.
- Web-downloaded and installed the software update.
- A very popular game and ready for the application port.
- your network can be configured as a DHCP Server.
- WIN9X / WIN2000 / WINXP / WinME / WINNT / WIN XP / WIN 7 is compatible with.
