Ports & interfaces
| Host interface |
PCI-E |
| Internal |
Y |
| PCI version |
1.1 |
Networking
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Copper ethernet cabling technology |
1000BASE-T, 100BASE-T, 10BASE-T |
| Flow control support |
Y |
| Chipset |
Realtek RTL8111 |
Packaging content
| Mounting brackets included |
Y |
| Low-profile bracket |
Y |
Performance
| Mac operating systems supported |
Y |
| Wake-on-LAN ready |
Y |
Additionally
| Wireless technologies |
Wired |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Transfer rate (Mbps) |
1000 Mbit/s |
| Ethernet LAN connection |
Y |

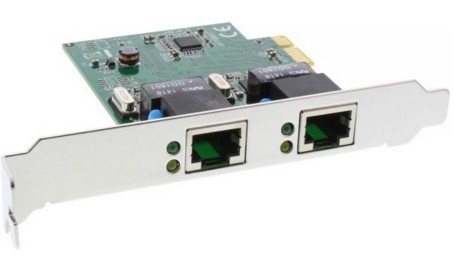

Dual Gigabit Network Card PCI Express 2x 1GBit/s PCIe x1
This PCI-Express dual Gigabit Ethernet controller card is a high performance 10/100/1000 BASE-T Ethernet LAN controller, and is perfectly to convert the PCI-Express interface into two Gigabit Ethernet ports.
- Two Gigabit Ethernet ports (RJ45 x 2).
- Complies with PCI-Express Revision 1.1.
- A high performance 1000BASE-T Ethernet controller card.
- Backward compatible to 10/100BASE-T networking.
- 10/100/1000Mbps data rate auto negotiation operation.
- Compatible to existing CAT-5 UTP cabling.
- Fully compliant with IEEE 802.3, 802.3u and 802.3ab.
- Supports full duplex flow control (IEEE 802.3x).
- Supports IEEE 802.1P layer 2 Priority Encoding.
- Supports IEEE 802.1Q VLAN tagging.
- Crossover Detection and Auto Correction operation.
- Supports WOL (Wake-On-LAN) function.
- Supports both Standard-Profile and Low-Profile computer chassis.
- Realtek RTL8111 Chip.
- System Requirement: Windows 8 32-/64-bit, Windows 7 32-/64-bit, Windows Server 2008 32-/64-bit, Windows Vista 32-/64-bit, Windows Server 2003 32-/64-bit, Windows XP 32-/64-bit, Windows 2000, ME, 98SE, Linux, MAC OS and DOS, Computer with a free PCI-Express slot.
- Package Content: PCI-Express dual Gigabit Ethernet controller card, User Manual, Software Driver CD, Low-profile bracket.
