System requirements
| Minimum hard disk space |
30 MB |
| Optical drive required |
Y |
| Mac compatibility |
N |
| Minimum RAM |
32 MB |
| Minimum processor |
Intel Pentium 200 MHz |
Bandwidth
| Full duplex |
Y |
| Supported data transfer rates |
10/100/1000Mbps |
Ports & interfaces
| Host interface |
PCI |
| Internal |
Y |
Other features
| Operating temperature (T-T) |
32 - 104 °F |
| Networking features |
Gigabit Ethernet |
| Compliance industry standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
Additionally
| Wireless technologies |
Wired |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Transfer rate (Mbps) |
1000 Mbit/s |

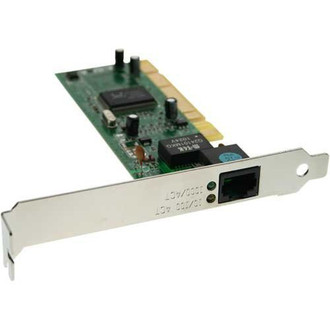

1x RJ45, Gigabit Ethernet, 10/100/1000Mbps
- Realtek Chipset, RTL8169SC
- Compliant with PCI V2.2
- specifications, 32-bit, 33/66MHz
- Supports 10Mbps/100Mbps/1000Mbps operations
- Supports full wire-speed Gigabit Ethernet rate
- 10/100/1000Mbps Auto-Negotiation for optimal connection
- Supports IEEE 802.1Q VLAN tagging
- Supports Half/Full duplex capability
- Specification and Requirements
- Communication Standard: IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-Tx, IEEE 802.3ab 1000Base-T, IEEE 802.3x Full Duplex Flow Control, IEEE 802.1Q VLAN tagging
- Transfer rate: Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit Ethernet: 1000Mbps (half duplex), 2000Mbps (full duplex)
- Connector: RJ-45 x 1
- Supporting OS: Windows 2000, Windows XP, Windows Vista, Win7, Linux
- Temperature: Operating Temp: 0°C ~ 40°C, Storage Temp: -20°C ~ 70°C, Humidity:10% to 90% (Non-condensing)
- Minimum System Requirements: Pentium compatible processor 200 MHz or above, min. 32MB RAM, min. 30MB available hard disk space, CD-ROM drive, 32-bit PCI slot
