Ports & interfaces
| Host interface |
PC Card 32-bit |
| Firewire (IEEE 1394) ports |
3 |
Other features
| Mac compatibility |
Y |
| Data transfer rate |
400 Mbit/s |
Additionally
| Wireless technologies |
Wired |

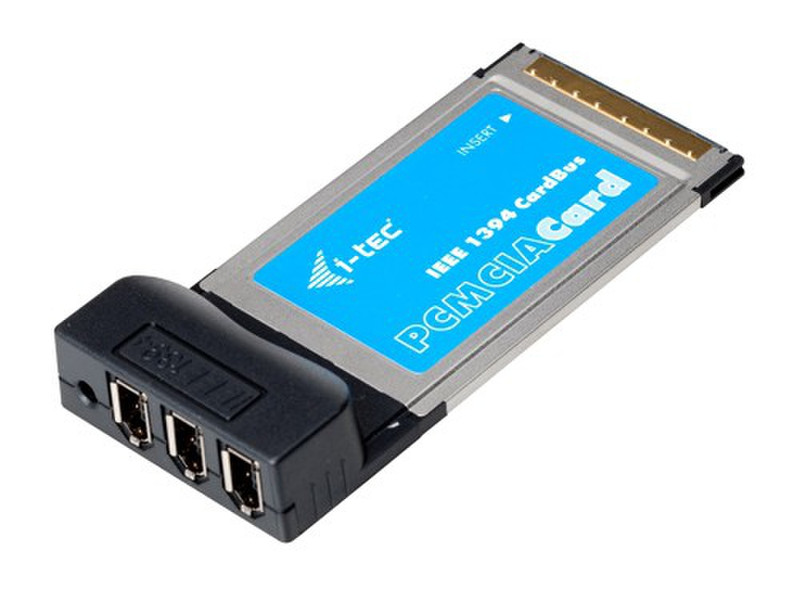

PCMCIA Type II CardBus 32bit, 3x IEEE 1394a, Win/Mac, 140g
The IEEE1394 3 Port CardBus Card provides high performance serial connectivity. It implements the Link and PHY layer for IEEE1394-1995 High Performance Serial Bus and 1394a Draft 4.0. It is compliant with 1394 Open HCI 1.0 and 1.1 with DMA engine support for high performance data transfer via a 32-bit bus master PCI host bus interface. Supports 100, 200 and 400 Mbps to provide industry-standard IEEE1394 peripheral connections for today desktop and mobile PC platform needs.
Features
- Built-in IEEE 1394a compatible PHY chip.
- Fully backward compliant with IEEE 1394-1995 devices.
- Built-in fully compliant OHCI link chip.
- Data transfer rates up to 100/200/400 Mbps.
- Provides a total of 3 IEEE 1394 ports.
- Links up to 63 devices.
- Supports Plug & Play specifications.
- Supports 32-bit BUS mastering data transfer at 33 MHz.
- Software Ulead Studio.
Can be used with
- FireWire devices - DV, Scanner, Printer and other FireWire 1394 audio/video devices (TV, VCR, DVD).
