Other features
| Input current range |
0 - 20 mA |
| Resolution |
16 bit |
| Supported network protocols |
Modbus/TCP, TCP/IP, UDP, DHCP, BOOTP, SNMP, SNTP |
| Sensor type |
NPN, PNP, Dry contact |
| Input voltage range |
0 - 10 V |
| Accuracy |
±0.1% FSR @ 25°C\n±0.3% FSR @ -30 and 70°C |
| Signal direction |
Input/output |
| Serial interface type |
RS-232/422/485 |
| Power consumption |
195 mA |
| Input impedance |
200000 Ω |
| Channel type |
Sink |
Features
| Isolation |
1.5 kV |
| Channels quantity |
4 channels |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

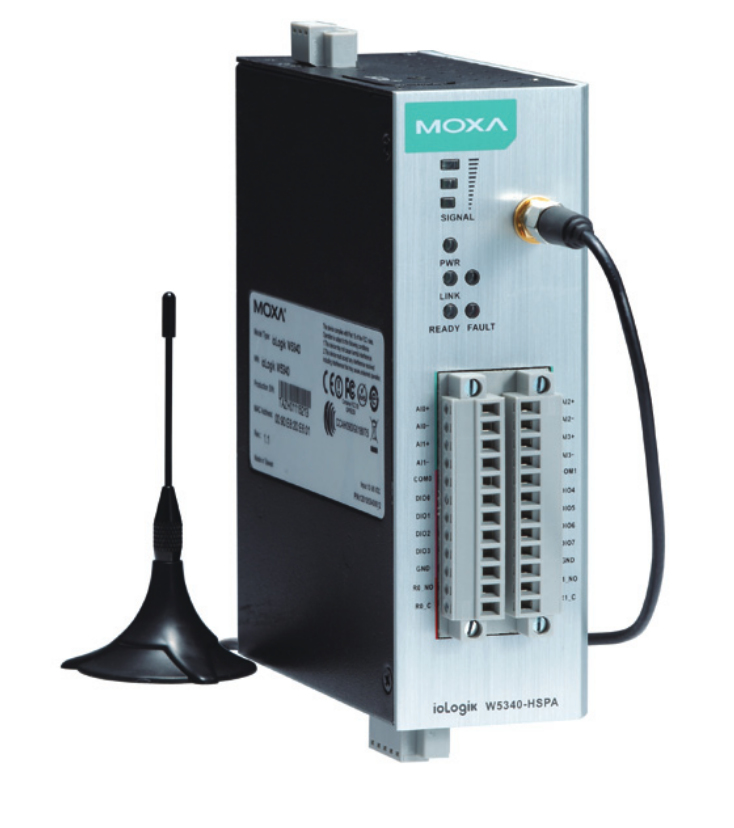

GPRS Remote I/O with 4 AIs, 8 DI/Os, 2 relays, -10 to 55°C
ioLogik W5300 series remote I/O modules are hardy, metal-encased ioLogik W5300 series remote I/O modules are hardy, metal-encased and a data logger with cellular communications (GPRS/HSPA) suitable for use in a wide variety of innovative I/O applications. ioLogik W5300 devices also provide Moxa’s patented Click&Go programming interface, giving engineers a powerful, simple tool that streamlines installation and setup into a nearly effortless process.
The ioLogik W5300 also delivers local data logging in a storage space expandable up to 32 GB. Thee ioLogik W5300 further comes with Moxa’s innovative, patented MX-AOPC UA Server software, that transforms network communications from centralized polling by the control system to event-based notifications that originate at the edge. By eliminating constant polling, communications may be brought up to real time speeds while reducing hardware costs and overall network overhead.
ioLogik W5300 devices provide benefits beyond mere cellular connectivity and remote input/output management; they are ideal solutions for any number of industrial applications, including:
- Pipeline monitoring for water, oil, and gas facilities
- Pump station and lift station monitoring
- Environmental monitoring
- Security and surveillance
