Technical details
| Multi split |
Y |
| Type |
Air conditioner outdoor unit |
| Hose length (max) |
80 m |
| Inverter technology |
Y |
| Seasonal efficiency rating (cooling) (SEER) |
6.5 |
| Operating temperature (heating) (T-T) |
-15 - 24 °C |
| Seasonal efficiency rating (heating) (SCOP) (Average heating season) |
4 |
| Cooling capacity in watts (max) |
11500 W |
| Heating capacity in watts (min) |
14500 W |
| Operating temperature (cooling) (T-T) |
-10 - 46 °C |
Outdoor unit
| Outdoor units quantity |
1 |
| Noise level (outdoor unit) |
54 dB |
| Outdoor unit width |
940 mm |
| Outdoor unit depth |
340 mm |
| Outdoor unit height |
999 mm |
| Outdoor unit weight |
81000 g |

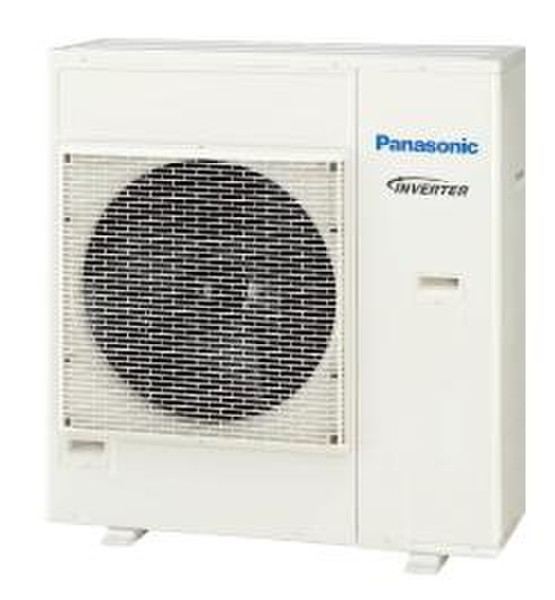

CU-5E34PBE - 4.5-17.5 kW, outdoor, White
ETHEREA MULTI SPLIT 5x1. WHITE. INVERTER+
Etherea with enhanced Econavi sensor and new Nanoe-G air-purifying system: outstanding efficiency, comfort and healthy air combined with state-of-the-art design.
Econavi features an in-built human activity sensor and a new sunlight detection technology to adjust output thereby giving you the best comfort at anytime whilst saving energy. Econavi not only optimizes air flow orientation and volume according to human presence, it also reduces cooling power automatically by no/less sunshine. With Econavi, energy savings of up to 38% are possible, whilst increasing your comfort.
Furthermore, the Nanoe-G revolutionary air-purifying system utilises nano technology fine particles to remove and deactivate 99% of both airborne and adhesive micro-organisms like bacteria, viruses and mould.
Using a Multi Split 4x1 or 5x1 Inverter+ system with the outdoors units CU-4E23PBE, CU-4E27PBE or CU-5E34PBE instead of 4 or 5 individual mono split Inverter+ systems, you reduce consumption and thus save more! Up to 36%! Furthermore, using a Multi Split system, you save space on the outdoor unit, making it easier to install in small spaces.
