Technical details
| Operating temperature (heating) (T-T) |
-15 - 24 °C |
| Seasonal efficiency rating (heating) (SCOP) (Average heating season) |
4.8 |
| Refrigerating medium weight |
1150 g |
| Ionizer |
N |
| Operating temperature (cooling) (T-T) |
-10 - 43 °C |
| Multi split |
N |
| Type |
Air conditioner outdoor unit |
| Refrigerating medium |
R410A |
| Hose length (max) |
15 m |
| Inverter technology |
Y |
| Seasonal efficiency rating (cooling) (SEER) |
7.6 |
Outdoor unit
| Outdoor unit width |
824 mm |
| Outdoor unit depth |
299 mm |
| Outdoor unit height |
619 mm |
| Outdoor unit weight |
35000 g |
| Heating airflow (outdoor unit) |
2160 m³/h |
| Cooling airflow (outdoor unit) |
2106 m³/h |
| Outdoor units quantity |
1 |
| Noise level (outdoor unit) |
65 dB |
Power
| Hourly energy consumption (cooling) |
0.835 kWh |
| Hourly energy consumption (heating) |
0.840 kWh |
| Annual energy consumption (heating) (Average heating season) |
933 kWh |
| Current |
16 A |
| Energy efficiency class (cooling) |
A++ |
| Energy efficiency class (heating) (Average heating season) |
A++ |
| Annual energy consumption (cooling) |
161 kWh |

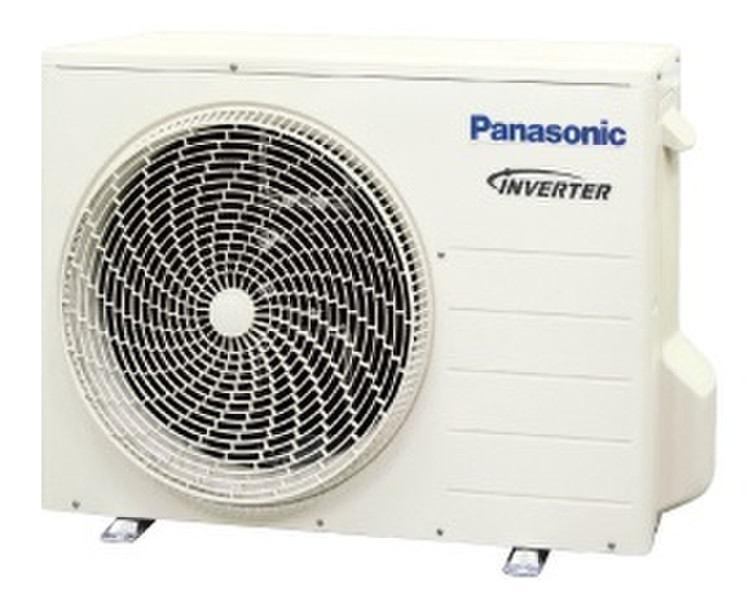

Outdoor Unit, Energy efficiency class A++/A++, R410A, INVERTER+, 65dB, 35kg, White
Etherea with enhanced Econavi sensor and new Nanoe-G air-purifying system: outstanding efficiency, comfort and healthy air combined with state-of-the-art design.
Econavi features an in-built human activity sensor and a new sunlight detection technology to adjust output thereby giving you the best comfort at anytime whilst saving energy. Econavi not only optimizes air flow orientation and volume according to human presence, it also reduces cooling power automatically by no/less sunshine. With Econavi, energy savings of up to 38% are possible, whilst increasing your comfort. Furthermore, the Nanoe-G revolutionary air-purifying system utilises nano technology fine particles to remove and deactivate 99% of both airborne and adhesive micro-organisms like bacteria, viruses and mould.
- New! This units can be installed on R22 pipings
- Maximum efficiency and comfort with Econavi, now with sunlight detection
- Nanoe-G air purifying system, 99% effective on both airborne and adhesive mould, viruses, bacteria and pollen allergen
- Optional smartphone control
- Mild Dry Cooling: prevent a rapid decrease in room humidity
- Super Quiet! Only 20 dB, equivalent to night-time in the countryside (E7, E9 and E12)
- More powerful airflow to quickly reach the desired temperature
HEALTHY AIR
- Nanoe-G air purifying system
- Mild Dry Cooling operation mode for increased comfort and prevention of skin moisture loss
ENERGY, EFFICIENCY AND ECOLOGY
- Maximum efficiency Inverter system, for bigger savings
- -45% consumption with Econavi on heat pump, and -38% on cooling mode
- R410A refrigerant gas
COMFORT
- Super Quiet mode (from 20 dB)
- Powerful mode
- Uniform dispersion of airflow
- Automatic vertical airflow control
- Hot start mode, increased comfort on heat pump mode, no cool airflow when process starts
- Automatic restart after power cut
EASE OF USE
- Real time clock with dual ON&OFF timer
- User friendly infrared remote control
- Optional wired weekly timer with 6 settings per day and 42 settings per week
- Connectivity function (indoor unit equipped with PCB port which can be connected to outside network)
- Optional Smartphone control
EASY INSTALLATION AND MAINTENANCE
- NEW! Heating only function by enabling software (only by service partner)
- Removable, washable panel
- 15 m maximum connection distance
- 15 m maximum elevation difference
- Maintenance access through the top panel of the outdoor unit
- Self-diagnosis function
