Technical details
| Seasonal efficiency rating (cooling) (SEER) |
6 |
| Operating temperature (heating) (T-T) |
-15 - 24 °C |
| Heating capacity in watts (nominal) (Average heating season) |
9600 W |
| Seasonal efficiency rating (heating) (SCOP) (Average heating season) |
3.8 |
| Cooling capacity in watts (nominal) |
7650 W |
| Cooling capacity in watts (min) |
980 W |
| Cooling capacity in watts (max) |
8600 W |
| Heating capacity in watts (min) |
980 W |
| Heating capacity in watts (max) |
1100 W |
| Operating temperature (cooling) (T-T) |
-10 - 43 °C |
| Multi split |
Y |
| Hose length (max) |
30 m |
| Inverter technology |
Y |
| Type |

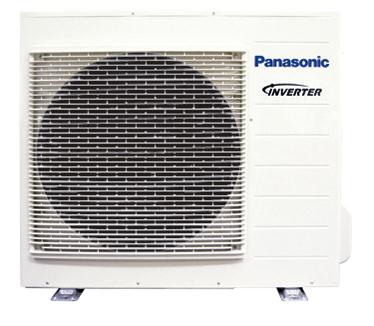

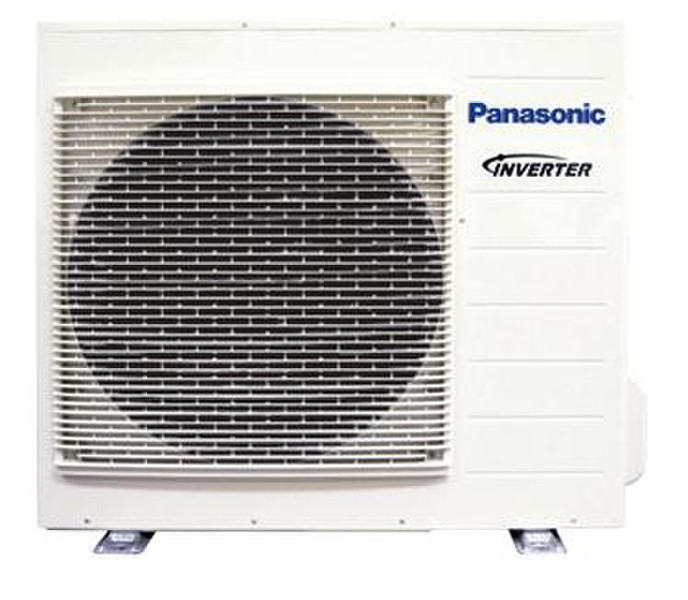

Air conditioner outdoor unit |
Outdoor unit
| Outdoor unit width |
875 mm |
| Outdoor unit depth |
320 mm |
| Outdoor unit height |
795 mm |
| Outdoor unit weight |
67000 g |
| Outdoor units quantity |
1 |
| Noise level (outdoor unit) |
53 dB |
Power
| Energy efficiency class (cooling) |
A+ |
| Energy efficiency class (heating) (Average heating season) |
A |
7.65kW/9.6kW, A+/A, 53dB, White
Etherea with enhanced Econavi sensor and new Nanoe-G air-purifying system: outstanding efficiency, comfort and healthy air combined with state-of-the-art design.
Econavi features an in-built human activity sensor and a new sunlight detection technology to adjust output thereby giving you the best comfort at anytime whilst saving energy. Econavi not only optimizes air flow orientation and volume according to human presence, it also reduces cooling power automatically by no/less sunshine. With Econavi, energy savings of up to 38% are possible, whilst increasing your comfort. Furthermore, the Nanoe-G revolutionary air-purifying system utilises nano technology fine particles to remove and deactivate 99% of both airborne and adhesive micro-organisms like bacteria, viruses and mould.
- New! This units can be installed on R22 pipings
- Maximum efficiency and comfort with Econavi, now with sunlight detection
- Nanoe-G air purifying system, 99% effective on both airborne and adhesive mould, viruses, bacteria and pollen allergen
- Optional smartphone control
- Mild Dry Cooling: prevent a rapid decrease in room humidity
- More powerful airflow to quickly reach the desired temperature
