Power
| Annual energy consumption (cooling) |
201 kWh |
| Hourly energy consumption (cooling) |
1000 kWh |
| Hourly energy consumption (heating) |
1050 kWh |
| Energy efficiency class (cooling) |
A++ |
| Annual energy consumption (heating) (Average heating season) |
980 kWh |
| Current |
16 A |
| Energy efficiency class (heating) (Average heating season) |
A+ |
Technical details
| Seasonal efficiency rating (cooling) (SEER) |
6.10 |
| Operating temperature (heating) (T-T) |
-15 - 24 °C |
| Refrigerating medium |
R410A |
| Hose length (max) |
15 m |
| Seasonal efficiency rating (heating) (SCOP) (Average heating season) |
4.00 |
| Refrigerating medium weight |
1020 g |
| Ionizer |
N |
| Operating temperature (cooling) (T-T) |
-10 - 43 °C |
| Multi split |
N |
| Type |
Air conditioner outdoor unit |
| Inverter technology |
Y |
Outdoor unit
| Outdoor unit width |
824 mm |
| Outdoor unit depth |
299 mm |
| Outdoor unit height |
619 mm |
| Outdoor unit weight |
34000 g |
| Heating airflow (outdoor unit) |
1998 m³/h |
| Cooling airflow (outdoor unit) |
1998 m³/h |
| Outdoor units quantity |
1 |
| Noise level (outdoor unit) |
65 dB |

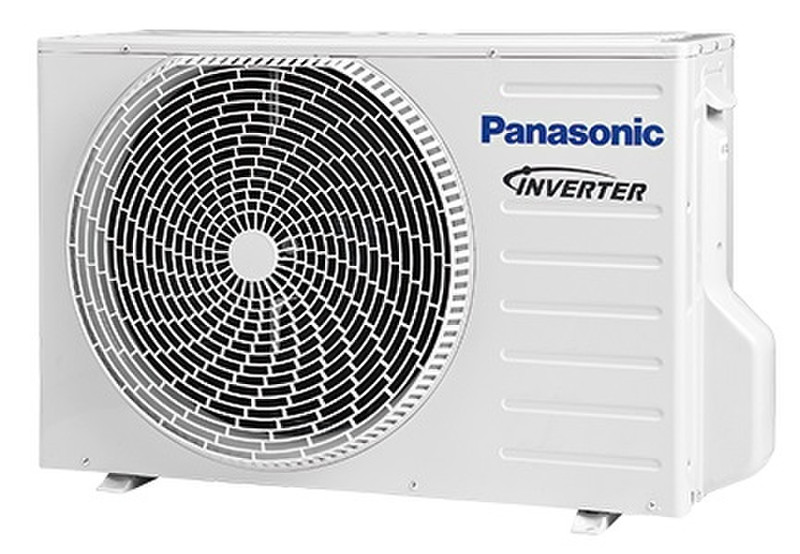

Outdoor Unit, Energy efficiency class A++/A+, R410A, Standard Inverter, 65dB, 34kg, White
RE Inverter models are powerful and efficient, with an outstanding energy ranking of A++/A+, unique in the market! The RE works up to an outdoor temperature of -15°C in heating mode and -10°C up a outdoor temperature of -15°C in heating and -10 in cooling and still with a high efficiency and capacity! Furthermore, the annual energy consumption has never been so low.
RE has a unique Anti Bacterial Filter in order to enjoy the best quality air, without viruses, mould or bacteria.
- New! Design
- New! Wired Controller (optional)
- New! This units can be installed on R22 pipings
- Complete line-up of standard Inverter models
- Quieter indoor units
- High energy savings
- Long connection distance (from 15 m up to 30 m)
HEALTHY AIR
- Anti Bacterial Filter
- Odour-removing function
- Anti-mould filter
ENERGY, EFFICIENCY AND ECOLOGY
- Inverter system
- R410A refrigerant gas COMFORT
COMFORT
- Super Quiet mode
- Automatic vertical airflow control
- Hot start mode
- Automatic restart
- Simple change over
EASE OF USE
- New! Wired Controller (optional)
- User friendly infrared remote control
EASY INSTALLATION AND MAINTENANCE
- 15 m maximum connection distance
- Removable, washable panel
- Maintenance access through the top panel of the outdoor unit
- Self-diagnosis function
