Power
| Annual energy consumption |
475 kWh |
| Power consumption (cooling) (min) |
185 W |
| Power consumption (cooling) (max) |
1170, 950 W |
| Power consumption (heating) (min) |
175 W |
| Power consumption (heating) (max) |
1500, 1060 W |
Technical details
| Type |

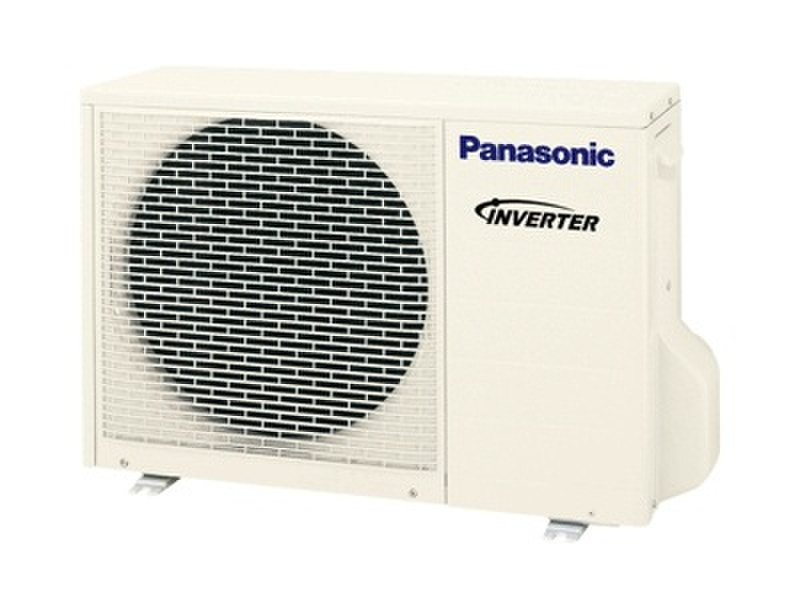

Air conditioner outdoor unit |
| Built-in display |
N |
| Dehumidifying capacity |
2 l/h |
| Cooling capacity in watts (max) |
3500 W |
| Heating capacity in watts (max) |
4200 W |
| Cooling capacity (max) |
3010 BTU/h |
| Heating capacity (max) |
3610 BTU/h |
| Hose length (max) |
15 m |
Outdoor unit
| Outdoor unit dimensions (WxDxH) |
780 x 289 x 540 mm |
| Outdoor unit weight |
34000 g |
| Outdoor units quantity |
1 |
| Noise level (outdoor unit) |
63 dB |
Sound emission
| Noise level (high speed) |
61 dB |
Additionally
| Cooling energy efficiency |
3.68 |
| Heating energy efficiency |
3.96 |
3500/4200 W, 3010/3610 Cal/h, 48/50 dB, 2 l/h, 475 kWh, 34000 g, White
Flexible Installation Panasonic Split Air Conditioners don`t need to be placed in a window, giving you more installation flexibility than ever. All that goes inside your home is the compact indoor unit, which delivers comfort without taking up too much space. And since the separate outdoor unit can be placed up to 25 meters away using a connecting pipe, you can even install the indoor unit on a wall that doesn`t face outdoors.
Super Quiet In conventional window-type air conditioners, most of the noise comes from the compressor. But with split air conditioners, the compressor is outside, where the noise can`t disturb you. Split air conditioners also have an advanced design that minimizes indoor unit noise. Heat Pump Select models have the ability to provide cool air when it`s warm, and hot air when it`s cold out, for comfort in all seasons.
User-Friendly Remote Control
Illuminated buttons make it easy to find and use the remote control in the dark. The remote is also features a large display screen and simple access to the most frequently used buttons (On/Off; temperature settings and up/down directional fan buttons). And the remote also operates in either pre-programmed (powerful, economy or quiet) or individual setting mode (airflow direction, fan speed, temperature setting, timer operation etc.).
Quiet Mode
Using the remote control, you make the unit quieter at the push of a button. When the quiet mode is activated, the fan speed (rpm) is automatically lowered from its current setting, decreasing the unit`s sound level by an additional 2 decibels. Economy Mode In economy mode, the indoor unit`s airflow flap will automatically be set to auto air-swing, temperature set to 0.5 degrees higher than the original set temperature, and the fan speed set at Super Low. This mode is best used when you feel comfortable with the current room condition and want to save energy. Powerful Mode In powerful mode, the unit automatically points the airflow flap down 10 degrees, sets the temperature 5.4 degrees lower than the original set temperature and sets fan speed to super high. By using this automatic setting, your room will be cool in approximately 15 minutes, and then the Split Air Conditioner will return to your original settings.
Removable, Washable Panel The front panel is easy to keep clean, as it can be removed quickly in one simple step, and washed in water.
Cross-Flow Fan The large airflow path is due to the exceptionally wide, 90mm diameter of our cross flow fan. This maintains super-quiet operation while the increased airflow sends clean, cool air to every corner of the room.
Double-Bend Heat Exchanger
This structure gives the heat exchanger a large surface area for higher efficiency. With 15 rows of copper piping, the double-bend heat exchanger helps to ensure the air the unit takes in will be cooled or heated, resulting in high heat exchange efficiency. This unique design also helps to reduce the size of the indoor unit. 2-Wing Fan The new 2-Wing fan makes the outdoor unit even quieter by suppressing air noise, and improves efficiency by pulling in more air. Airflow Direction Control The indoor units have adjustable airflow control for up & down or left & right airflows. There are 5 patterns and an auto setting for each. Top-Panel Maintenance Access The outdoor unit`s top panel lifts off for easy access.
