Performance
| Analog signal format system |
NTSC |
| Linux operating systems supported |
Y |
| HDCP |
Y |
| Mac operating systems supported |
Y |
| Operating hours (hours/days) |
24/7 |
Ports & interfaces
| PC Audio in |
Y |
| RS-232 interface |
Y |
| HDMI ports quantity |
4 |
| DisplayPorts quantity |
1 |
Design
| Bezel width (top) |
15.7 mm |
| Bezel width (bottom) |
15.7 mm |
Display
| Color gamut |
72% |
| HD type |
4K Ultra HD |
| Display type |
LED |
Computer system
| Image formats supported |
JPG, PNG |
| Internal storage capacity |
8 GB |
Technical details
| Portrait mode |
Y |
| LED backlighting type |
Edge-Lit LED |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Ethernet LAN connection |
Y |
3840 x 2160, 16:9, 248.92 cm (98 ") , 400 nits, 8 ms, 120Hz, 1300:1, 72% NTSC, 10 bit, 110 kg, LED, 100-240V, 50/60 Hz, 410 W, DisplayPort 1.2 x 1, HDMI 2.0 x 2 (HDCP 2.2), HDMI 1.4 x 2

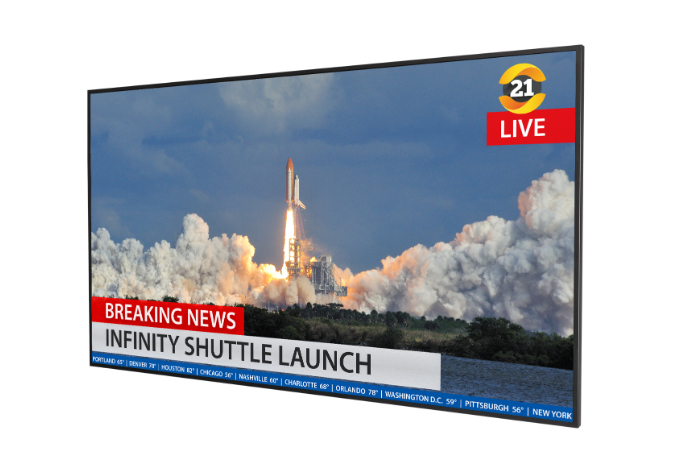

The Planar QE9850 is an Ultra HD resolution (3840
x 2160) LCD displays that provides an impressive
end-to-end solution for designing, distributing and
playing back ultra-high resolution content on a single
display or multiple displays within a network,
dramatically reducing installation cost and complexity.
Available with an embedded media player and cutting-
edge 4K @ 60Hz support through DisplayPort 1.2 and
HDMI 2.0, the Planar QE9850 is ideal for applications
ranging from dynamic digital signage to collaborative
meeting spaces.
