Storage
| Number of storage drives supported |
4 |

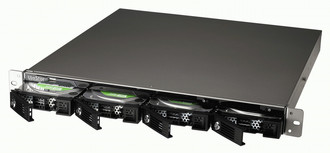

VS-4016U-RP - 19", Intel® Atom, 1GB DDRII, USB 2.0, black
QNAP VS-4016U-RP VioStor NVR (Network Video Recorder) is the high performance 1U chassis network surveillance system featuring Linux-embedded OS, Intel CPU, 1GB DDRII memory, and powerful surveillance features. It supports unique multi-server monitoring for up to 120-channel monitoring from multiple QNAP NVR servers simultaneously. The VioStor NVR houses 4 SATA hard drives to provide up to 8TB storage capacity. Moreover, the NVR supports over 800 network camera models from 36 popular brands, e.g. AXIS, ACTi, A-MTK, Arecont Vision, AVTECH, Canon, Cisco, CNB, Brickcom, DIGITUS, D-Link, EDIMAX, ELMO, EtroVision, GANZ, Hikvision, iPUX, IPX, IQeye, LevelOne, Linksys, Messoa, MOBOTIX, NAKAYO, Panasonic BB/ BL/ i-Pro, SANYO, SHANY, SONY, TOA, TOSHIBA, TRENDnet, Videosec, VIOSECURE, VIVOTEK & Y-CAM.

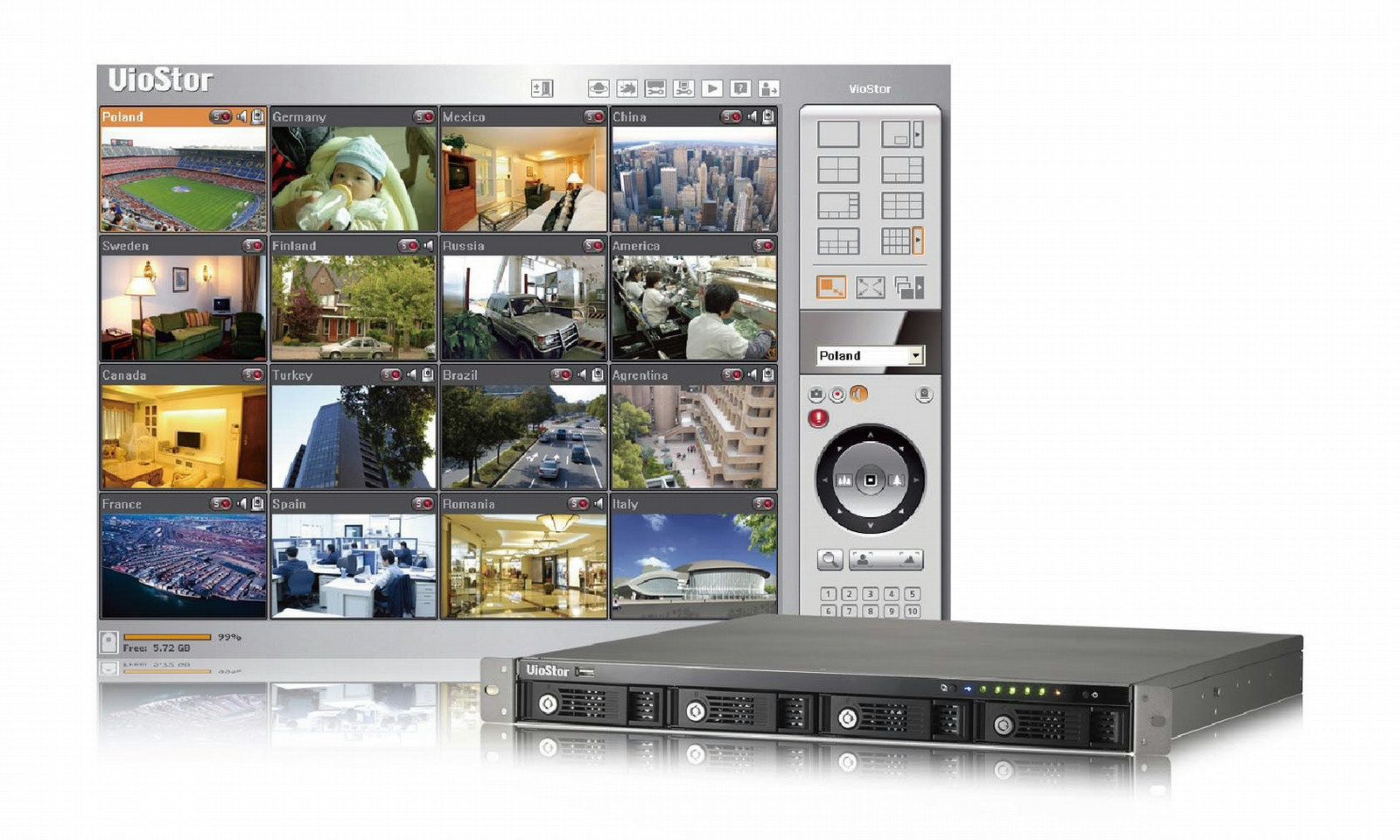

The VioStor NVR is a complete network surveillance solution which provides recording, real-time monitoring, and remote data access. It supports up to 16-channel megapixel recording in H.264, MxPEG, MPEG-4, or MJPEG video compression.Besides, the NVR supports diversified recording features and video search by intelligent video analytics, e.g. motion detection, missing object, foreign object, out of focus, and camera occlusion, etc. In real-time monitoring, you can select to view the channels (IP cameras) with different display modes or drag and drop to change the display order of the channels flexibly. The NVR also supports other intelligent features such as smart control of PTZ cameras, instant alarm alert, digital zoom, data search by date and time, timeline, and event. All the functions can be configured by the IE web browser.
Powerful Features of VS-4016U-RP VioStor NVR (Network Video Recorder) :
- Exclusive Linux-embedded system, Intel® Atom™ CPU and 1GB DDRII memory
- Real-time monitoring and recording (video/ audio) from multiple network cameras (up to 16 channels)
- Supports streaming from network cameras and servers
- High quality H.264, MxPEG, MPEG-4, and M-JPEG recording (varied by camera models)
- Supports recording from megapixel IP cameras (up to 8-megapixel)
- Complete recording features: schedule recording, alarm recording, alarm recording schedule, motion-detection recording, pre-alarm, and post-alarm recordings, etc.
- Up to 8TB storage capacity for long-term recording
- Multi-server monitoring: Supports monitoring of up to 120 channels
- Easy Data Search by Date & Time, Timeline, Event, Intelligent Video Analytics (IVA)
- Remote management: access and playback recordings by web browser, FTP, and Network Neighborhood anytime, anywhere
- Trouble-free 6-step installation
- Smart search of IP cameras for quick configuration
- Centralized monitoring with "Click-to-Go" PTZ control and adjustable display mode
- Digital zoom for monitoring and playback
- The display order of the monitoring channels can be changed by drag and drop
- Event notification on monitoring screen
- Real-time SMS and email alert
- Detailed event and system logs (include users' networking services and recording data access record)
- Schedule remote replication to NAS (Network Attached Storage) for video backup
- Unique online user list function and access authority control
- Multi-channel playback at different speed
- Enhanced file security by digital watermarking
- Automatic system startup when the power resumes after power outage
- Redundant Power Supply
- Ultra-high-end RAID (RAID 0/ 1/ 5/ 5+ hot spare / 6/ JBOD) to protect all the important recordings in the most secure way
- Hot-swap hard drive design
- Online RAID Capacity Expansion and Online RAID Level Migration
- Two Gigabit LAN ports for failover, load-balancing, or multi-IP setting
- Supports UPS (Uninterruptible Power Supply) for 24x7 service
- DOM architecture with embedded fail-safe dual OS for enhanced reliability
