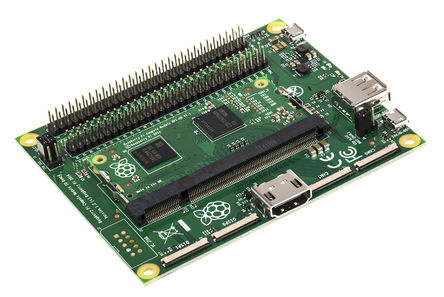

Raspberry Pi 8134164 development board

Raspberry Pi Compute Module Kit <b>Raspberry Pi Compute Module Development Kit</b>

The Raspberry Pi Compute Module Development Kit contains all the basic components you need to develop embedded designs using the Raspberry Pi Compute Module.

<b>What is the Compute Module?</b>

The Compute Module from Raspberry Pi has been specially created for design engineers who are happy with Pi functionality but require a much smaller form factor (67.6 mm x 30 mm) for their embedded designs. The module also features the same BCM 2835 System on Chip (SoC) and memory (512MB) as the Pi B+.

<b>Extra Features of the Compute Module</b>

- 4 GB of on-board embedded Multi-Media Controller (eMMC) flash memory to replace the SD card that would normally be inserted into a Raspberry Pi board.
- 200-pin connector edge that provides access to all inputs and outputs on the module
- Can fit a standard DDR2 SODIMM connector

<b>What is the I/O Board?</b>

The Compute Module plugs straight into the input/output (I/O) board which then allows access to all of the Compute Module's processor interfaces. Through the I/O board, the design engineer can then set-up the module to install Raspbian and can programme the module's flash memory.

<b>What is in the kit?</b>

- 1 x Compute Module
- 1 x I/O board
- 1 x CMIO to Raspberry Pi camera adaptor board
- 1 x CMIO to Raspberry Pi display adaptor board
- 2 x FFC cables
- 1 x power supply (5 V)
- 1 x USB A to micro B data cable
