Memory
| Supported memory clock speeds |
800, 1066, 1333, 1600 MHz |
| Supported memory types |
DDR3-SDRAM |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
Storage
| Storage drive sizes supported |
2.5 " |
| Number of storage drives supported |
1 |
| Compatible memory cards |
Memory Stick (MS), MS PRO, SD, SDHC |
| Card reader integrated |
Y |
Other features
| Number of processors installed |
1 |
| Power LED |
Y |
Motherboard
| Number of processors supported |
1 |
Graphics
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
Processor
| Processor lithography |
32 nm |
| Thermal Design Power (TDP) |
10 W |
| L2 cache |
1 MB |
| Processor cores |
2 |
| Processor frequency |
2.13 GHz |
Processor special features
| Execute Disable Bit |
Y |
| Intel 64 |
Y |
| Intel Dual Display Capable Technology |
Y |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel vPro Technology |
N |
| Enhanced Intel SpeedStep Technology |
N |
| Intel Demand Based Switching |
N |
Power
| Number of power supply units |
1 |
| Power supply |
40 W |
| Power supply type |
AC/DC |
Ports & interfaces
| Headphone outputs |
1 |
| Microphone in |
Y |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Performance
| Built-in camera |
Y |
| Megapixel |
2 MP |
Networking
| Wi-Fi |
Y |
| Networking features |
Gigabit Ethernet, WLAN |
Additionally
| Chipset |
Intel NM10 |
| Intel HD Audio Technology |
Y |
| Graphics |
GMA 3650 |
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
Intel ATOM D2700 Dual Core 2.13 GHz, Intel NM10, 39.624 cm (15.6 ") 1366x768 Touchscreen, 2 x 204-pin SoDIMM DDR3-800/1066 max.4GB, Gigabit Ethernet, WLAN 802.11 b/g/n, 2 x 2W, WebCam

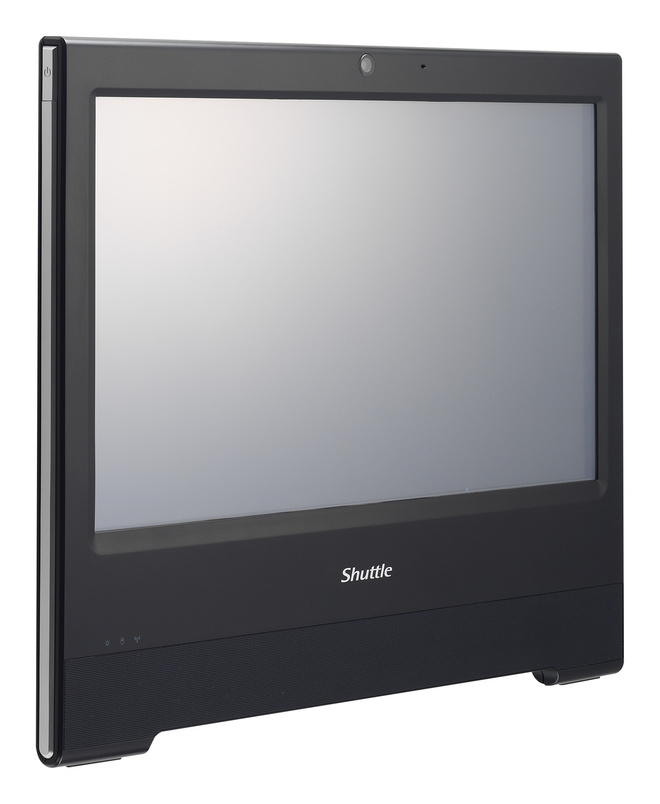

All-in-one Touchscreen Barebone PC
The Shuttle X50V3 Barebone is an all-in-one PC boasting a 39.6cm (15.6-inch) LCD touchscreen powered by Intel's dual core Atom processor D2700. Intended for use in the home environment, the Shuttle X50V3 Barebone is targeted at hardware experts seeking to build a complete system according to their individual requirements. Most of the hardware is yet built in, just three components need to be installed: memory, hard disk (or SSD) and operating system. Equipped with Intel's integrated graphics, it provides generous performance for daily computing with internet and office applications. An external display can be connected via HDMI or D-Sub. A 2.0MP webcam, built-in speakers, card reader, WLAN and other features leave nothing you could ask for. Have any applications start up quickly by just touching the screen for working most swiftly and conveniently. With the optional accessory PCL69 you can upgrade the device with additional ports: 2x RS232 (serial) and 1x LPT (parallel).
Multiformat card reader
At last – no more searching for missing digital camera leads. Simply insert the memory card and you can access all stored photos and videos immediately.
Anti-theft protection
The Kensington Lock forms part of the anti-theft system. As with many other Notebooks, this Mini-PC can also be safely locked, ensuring long-term enjoyment from your Shuttle product.
Inbuilt stereo speakers
Two powerful speakers are elegantly integrated into the design and deliver astonishingly good sound quality. And when more power is needed, you can attach external speakers via audio jacks.
Suitable for Linux operating systems
This model was successfully tested with openSUSE Linux by Novell. All machine functions worked without problem immediately after installation.
Connections without all those annoying cables
Data is transferred by WLAN completely without cables. Accessing the Internet and local network resources (e.g. printers) is now child's play when within range of an access point/hotspot.
Solid base
Folded 180° vertically, the chrome anti-slip pedestal can be used as a carrying handle. A particularly clever solution from Shuttle's engineers.
Keeping in touch
The revolutionary touchscreen allows this Mini-PC to be controlled without the use of mouse or keyboard. Touching the screen with a finger or stylus takes the place of the mouse. And with a virtual keyboard, entries can be made directly on the screen.
Securely
attached
The practical VESA mounting surface on the back of the device enables it to be attached to monitor arms or wall mounts. The VESA format is standardised, making it suitable for most mounts.
Integrated Webcam
The inbuilt Webcam enables problem-free video telephony and video conferencing in high-quality megapixel format.
Fan-less external power supply
A highly effective external power supply provides the Shuttle Mini-PC with its energy. And since it works without a fan, it is completely noise-free.
