Graphics
| Graphics adapter memory type |
GDDR3 |
| Maximum graphics adapter memory |
392 MB |
| Graphics adapter family |
Intel |
Memory
| Supported memory clock speeds |
1066 MHz |
| Supported memory types |
DDR3-SDRAM |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
4 GB |
Storage
| Storage drive sizes supported |
2.5 " |
| Number of storage drives supported |
1 |
| Compatible memory cards |
SD, SDHC, SDXC |
| Card reader integrated |
Y |
Motherboard
| Supported processor frequency (max) |
1.86 GHz |
| Number of processors supported |
1 |
Other features
| Number of SATA connectors |
2 |
| Number of processors installed |
1 |
| Power LED |
Y |
Processor
| Processor lithography |
32 nm |
| Thermal Design Power (TDP) |
10 W |
| L2 cache |
1 MB |
| Processor cores |
2 |
| Built-in processor |
Y |
| Processor frequency |
1.86 GHz |
Processor special features
| Intel 64 |
Y |
| Intel Dual Display Capable Technology |
Y |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel vPro Technology |
N |
| Enhanced Intel SpeedStep Technology |
N |
Power
| Number of power supply units |
1 |
| Power supply |
40 W |
Ports & interfaces
| Headphone outputs |
1 |
| Microphone in |
Y |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Networking
| Wi-Fi |
Y |
| Networking features |
Gigabit LAN, IEEE 802.11b/g/n |
Additionally
| Chipset |
Intel NM10 |
| Graphics |
GMA 3650 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

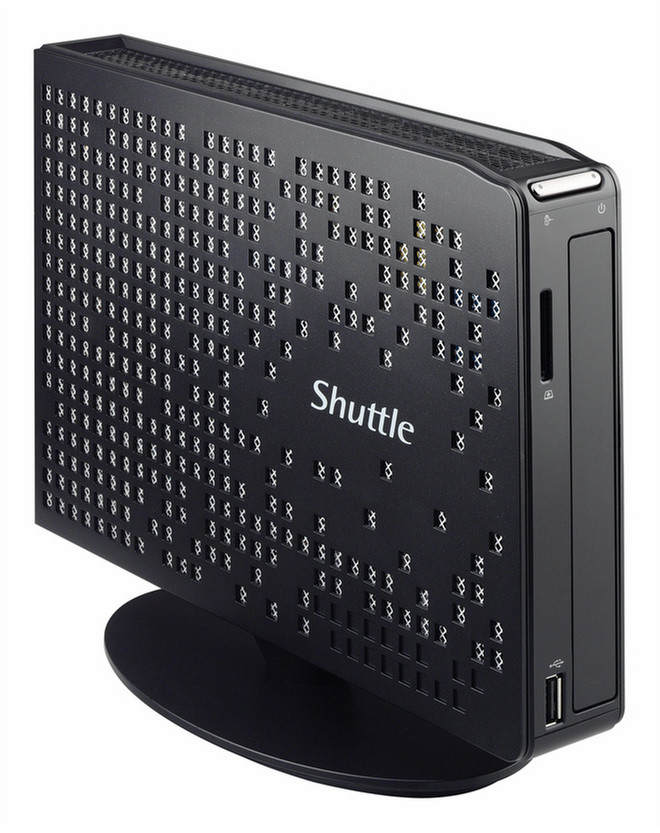

Barebone XS35V3L, Intel Atom D2700 1.86GHz, Intel NM10 Express, 2 x SO-DIMM DDR3-1066MHz, 2 x SATA II, 5 x USB 2.0, Intel GMA 3650 8MB, Gigabit LAN, IEEE 802.11b/g/n, External PSU 40W
Suitable for continuous operation – fanless 1-litre PC.
The XS35V3L is a thrifty barebone suitable for building of particularly slim nettops with drives and operating system, as well as for purely network-based applications in client/server environments. The pre-installed Intel Atom D2550 processor clocked at 2x 1.86 GHz offers sufficient computing power for a wide range of possible applications. The XS35V3L comes completely fanless which helps cut down on operating noise and expensive servicing as there are no moving parts in the machine. Equipped with the relevant hard drives or flash memory/SSDs, the XS35V3L is suitable for continuous 24/7 operation.
Intel chipset inside.
Play it safe with the reliable chipsets from the world's largest chip manufacturer. Intel chipsets have proven themselves over many years, have been presented with awards by the trade press and offer the best possible degree of compatibility.
Multiformat card reader.
At last – no more searching for missing digital camera leads. Simply insert the memory card and you can access all stored photos and videos immediately.
Anti-theft protection.
The Kensington Lock forms part of the anti-theft system. As with many other Notebooks, this Mini-PC can also be safely locked, ensuring long-term enjoyment from your Shuttle product.
Fan-less external power supply.
A highly effective external power supply provides the Shuttle Mini-PC with its energy. And since it works without a fan, it is completely noise-free.
Connections without all those annoying cables.
Data is transferred by WLAN completely without cables. Accessing the Internet and local network resources (e.g. printers) is now child's play when within range of an access point/hotspot.
Generous supply of USB ports.
You can never have enough of those versatile USB ports. This Shuttle Mini-PC offers 6 ports, with further ports for internal expansions located on the mainboard.
Compatible with Microsoft Windows 7.
This Shuttle Mini-PC is ideally prepared for the new Microsoft Windows 7 operating system. Updating to the new version couldn't be simpler.
Fanless and whisper-quiet.
The fanless technology used in this PC means it is incredibly quiet. Doing away with these mechanical components also reduces the number of wearing parts, making the machine more durable and stable.
Low energy consumption.
Thrift is a virtue. In terms of power consumption this Mini-PC sets an example. It is not just good for the environment but for your pocket, too.
Optimal air flow.
Warm air is transported out of the chassis by means of cleverly arranged components, which enables a large number of parts to be cooled simultaneously in the air flow. At no time can heat build up and adversely affect the stability of the system.
