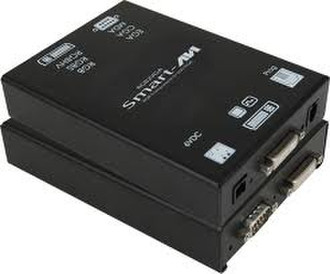

Smart-AVI RGB2VGA video converter

RGB Component Signal to DVI / VGA, HD-15, DVI-D, 1920 x 1200 Max, 165MHz Convert RGB Component Signals to DVI or VGA Without Loss of Video or Audio Quality. Around the world, companies seek to use the newest technology available when it comes to flat-screen displays for digital signage and communications. The common issue that often comes up is that older equipment such as video players, imaging hardware and audio components typically output their signals as RGB (Red, Green, Blue and the synchronization signals HSYNC and VSYNC). These component signal frequencies are generally too "slow" for modern displays such as digital monitors and flat-screen displays.

- Supports VGA, EGA, CGA, YCbCr, YPbPr Signal Inputs
- Selectable Input Connection: RGBS 5-pin, RGBHV 8-pin, VGA 15-pin, Component RGB – 3AV,
- Output Connection: Dual VGA 15-pin, Dual VGA 12-pin
- VGA Output Supported: VGA (640x480), SVGA (800x600), XGA (1024x768), HDTV (1360x768)
- Input Signal Auto Scan: CGA (14.5-16.5KHz), EGA (23.5-25.5KHz), VGA (30.5-32.5KHz)
- Input Signal Auto Scan: YCbCr / YPbPr (480i, 576i, 720i, 1080i, 480p, 576p, 720p, 1080p)
- English and Chinese On-Screen Display Menu
- Supports Output Resolution Control, Position Control and Zoom Control
- Digital 24-bit A/D Converter for True 16.7-million Color Conversion
- Supports all VGA Monitors (CRT, LCD, PDP)
- Over 70 Pre-installed Video Modes for Rapid Syncing
- Additional Video Modes Programmable Via On-Screen Display
- Rack-Mountable
