Management features
| Multicast support |
Y |
| Web-based management |
Y |
| MIB support |
MIB II (RFC 1213), MIB (RFC 1493/RFC 2665/RFC 2764), RMON MIB (RFC 1757), RFC 2737, RFC 2742, RFC 2021, RFC 2863, RFC 2618 |
| System event log |
Y |
| Quality of Service (QoS) support |
Y |
Data transmission
| MAC address table |
32 entries |
| Store-and-forward |
Y |
| Supported data transfer rates |
10/100/1000 Mbps |
| Switching capacity |
100 Gbit/s |
| Maximum data transfer rate |
1 Gbit/s |
| Number of VLANs |
255 |
Protocols
| Switching protocols |
802.1D, .1w. 1s |
Other features
| Packet transfer speed |
74.4 Mpps |
| Connectivity LEDs |
Y |
| Management platform |
Telnet/SLIP/HTTP/SNMP |
| Non-operating relative humidity (non-condensing) |
10 - 90% |
| Slot type |
SFP transceiver |
Networking
| Port mirroring |
Y |
| IGMP snooping |
Y |
| Link aggregation |
Y |
| IP routing |
Y |
| Spanning tree protocol |
Y |
Security
| Static port security |
Y |
| Access Control List (ACL) |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
50 |
| Console port |
RS-232 |
| SFP module slots quantity |
4 |
| SFP/SFP+ slots quantity |
4 |
Performance
| Packet buffer memory |
0.5 MB |
| Stackable |
Y |
Design
| Safety |
UL / CUL (UL 60950-1, CSA 22.2 NO60950-1); CB (IEC60950-1); CSA/CUS (CSA 22.2. NO 60950-1 & UL60950-1) |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
Y |

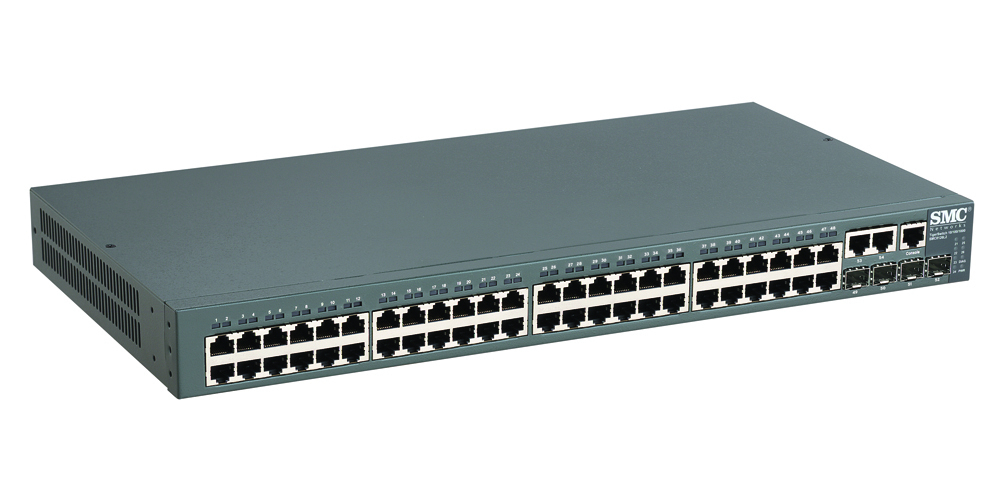

SMC8150L2 UK
The TigerSwitch 10/100/1000 SMC8126L2/SMC8150L2 provide wire speed 10/100/1000 Gigabit Ethernet switching specially designed for SMB workgroup environments. High-speed performance combined with an advanced feature set allows an increase in throughput and fl exibility for the SMB. Built around the latest in switching silicon design to provide lowest power but highest performance. The SMC8126L2/SMC8150L2 are also future proofed for growth as new software features become standardized and essential for the SMB network. As part of SMC’s on-going commitment to the environment this new switch family has been designed with the latest environment standards in mind concerning manufacturing processes, packaging and recycling.
MultiLink Trunking with LACP
Including the ability to bundle together the front panel ports to provide higher performing uplinks. Trunk links can be confi gured manually or using the 802.3ad standard which is supported on this
switch family.
Highest Performance and Lowest Power
As part of SMC commitment to green networking this switch family is designed around the latest generation switching silicon which can provide high performance and the low power requirements
such as 38W for the SMC8126L2. Translating into approximately 1.4W per port for the 26 port and 1.3W per port for the 50 port.
Flexible Security Features
Security is critical to next generation networks. This switch family includes a range of User and Device security functions which will help protect the network. Secure management interfaces for
protecting device confi guration and secure user access using 802.1x or Private Vlans to prevent unauthorized access.
IP Clustering
Ease of management is crucial and to help deliver this we have included IP Clustering. This allows users to group together up to 32 switches as part of a logical cluster. The units can be part of
this switch family or from the SMC61xxL2 family giving added flexibility.
