Packaging data
| Mounting brackets included |
Y |
| Rack mount kit |
Y |
| Quick start guide |
Y |
Power
| Power consumption (max) |
10 W |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Gigabit Ethernet (copper) ports quantity |
16 |
| Combo SFP ports quantity |
2 |
Design
| Form factor |
1U |
| Rack mounting |
Y |
Networking
| 10G support |
N |
| Broadcast storm control |
Y |
| MAC address auto-learning supported |
Y |
| Flow control support |
Y |
| Full duplex |
Y |
Data transmission
| MAC address table |
8000 entries |
| Switching capacity |
36 Gbit/s |
| Jumbo frames |
10000 |
| Throughput |
26.7 Mpps |
Power over Ethernet (PoE)
| Total Power over Ethernet (PoE) budget |
220 W |
| Power over Ethernet plus (PoE+) ports quantity |
16 |
| Power over Ethernet (PoE) |
Y |
| Power protection features |
Over current |
Additionally
| Jumbo Frames support |
Y |
| On/Off switch |
Y |

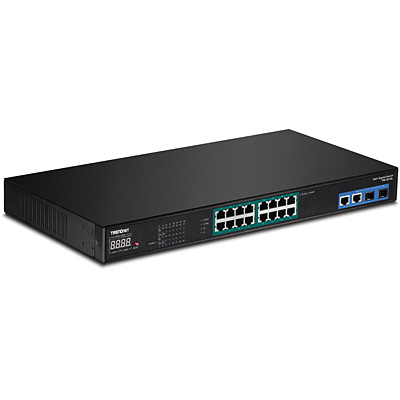

18-Port Gigabit NVR PoE+ Switch, w / LED Display
TRENDnet's 18-Port NVR PoE+ Switch, model TPE-3018L, is designed for use with a 16-channel NVR surveillance system. Users are able to connect all 16 IP cameras to the switch, while still providing 2 shared uplink ports for dedicated connections to your network, NVR, and / or NAS devices. This switch features a 220 watts total power budget, providing you with enough power for even the most demanding surveillance applications. Use the convenient front-panel LED display to view total power, available power, and power-per-port. Rack mountable hardware design and front-panel LEDs easily integrate into your existing NVR and IP surveillance solutions.
