Performance
| Motherboard form factor |
Mini ITX |
Back panel I/O ports
| Serial ports quantity |
1 |
| WiFi-AP antenna jack |
1 |
| PS/2 ports quantity |
1 |
| Headphone outputs |
3 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| Digital audio optical out |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Processor
| Maximum number of SMP processors |
1 |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of SATA connectors |
2 |
Expansion slots
| Mini PCI Express slots |
2 |
| PCI Express x1 slots |
1 |
Graphics
| On-board graphics adapter |
Y |
| HDCP |
Y |
Memory
| Number of memory slots |
2 |
| Maximum internal memory |
4 GB |
Networking
| Networking features |
Gigabit Ethernet |
Additionally
| Graphics |
GMA 3150 |
| Ethernet LAN (RJ-45) ports quantity |
1 |

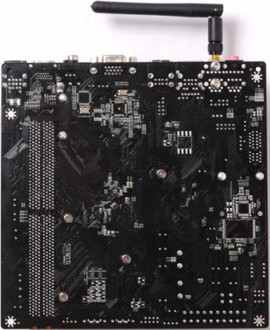

NM10-ITX WiFi, Intel NM10 Express, DDR2 667/800 MHz, GIgabit Ethernet, , IEEE 802.11n/g/b, mini-ITX
Experience energy-efficient computing in a miniature form factor with the ZOTAC NM10-ITX WiFi mini-ITX platform. The ZOTAC NM10-ITX WiFi platform delivers plenty of performance for everyday tasks such as web browsing and e-mail while consuming minimal amounts of energy for true eco-friendly computing that’s smart and sensible.
The ZOTAC NM10-ITX WiFi packs everything you need into a mini-ITX form factor including an Intel® Atom processor and Intel® NM10 Express chipset – a combination that delivers class-leading energy-efficiency and performance. From the Microsoft® DirectX® 9 and OpenGL® 1.5 compatible Intel® Graphics Media Accelerator 3150 graphics processor to the PCI Express x1 and mini PCI Express expansion slots, the ZOTAC NM10-ITX WiFi is the best choice for a no compromise eco-friendly computing experience.
