管理功能
| 支持多重播放 |
Y |
| 支持管理信息基本原则 |
RFC 1213 SNMP II, RFC 1215 SNMP, RFC 1493, RFC 1757 RMON I, RFC 1907 SNMP v2c, SMI v2 II, RFC 2096 IP, RFC 2233, RFC 2571 SNMP, RFC 2573 SNMP, RFC 2574 SNMPv3, RFC 2575 SNMP, RFC 2618 RADIUS, RFC 2620 RADIUS, RFC 2665, RFC 2674, RFC 2737, RFC 2819 RMON I, RFC 2863, RFC 2925, RFC 3414 SNMP SM, RFC 3415 SNMP ACM, RFC 3418 SNMP v2 |
| 支持服务质量（QoS） |
Y |
| 网上管理 |
Y |
其他功能
| 等待时间 |
10 µs |
| 布线技术 |
10/100/1000Base-T(X) |
| 带宽 |
19.2 Gbit/s |
| 电源类型 |
AC |
安全
| SSH / SSL支持 |
Y |
| 存取控制清单(ACL) |
Y |
| MAC（媒体存储控制）地址过滤 |
Y |
联网
| 动态主机配置协议客户 |
Y |
| 端口镜像 |
Y |
| 广播风暴控制 |
Y |
| IGMP侦听 |
Y |
| 自动 MDI / MDI - X 检测功能 |
Y |
| 速率限制 |
Y |
| 链路汇集 |
Y |
| 生成树协议 |
Y |
| 流量控制支持 |
Y |
| 10G支持 |
N |
| 全双工传输 |
Y |
数据传输
| MAC 地址表 |
8196 entries |
| 存储转发 |
Y |
| 支持数据传输率 |
10/100/1000Mbps |
| 交换容量 |
17.6 Gbit/s |
| 最大数据传输率 |
1 Gbit/s |
端口 & 界面
| 基本交换 RJ-45 以太网端口数量 |
52 |
| SFP模块插槽数量 |
2 |
| 快速以太网（铜缆）端口数量 |
48 |
| 以太网铜缆技术 |
100BASE-TX, 100BASE-T |
| 控制台端口 |
RJ-45 |
| SFP/SFP+端口数量 |
2 |
| 千兆以太网(铜)端口数量 |
2 |
协议
| 管理协议 |
IGMP, FTP, TFTP, SFTP |
设计
| 安全 |
UL 60950-1, EN 60950-1, CSA 2.22 # 60950, IEC 60950-1, EU RoHS |

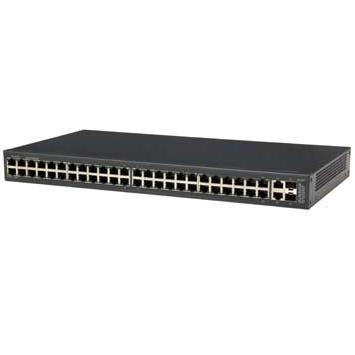

L2 Managed, Gigabit Ethernet, 52 x RJ-45, 3.1kg, Black
Fully-Managed Layer 2, 10/100 Switching with Enterprise-Class Features
The 3Com® Switch 4210 is a Layer 2 entry-level 10/100 LAN switch with enterprise-class QoS, security and management features, delivering high value for network administrators looking for an economical edge device that provides simple port expansion.
This model has 48 10/100 copper Ethernet ports and two true ports 10/100/1000 with a copper
connection and two true ports for 100 or 1000MB fiber connections using mini-GBIC SFP transceivers (transceiver ordered separately). Total active ports supported is 52 at any one time.
Setting them apart from lower-end "smart managed" devices, the Switch 4210 supports an
industry-standard Command Line Interface (CLI), Web-based administration, and SNMP management.
Cluster together up to 255 devices for easy administration, with single IP management across 3Com
Enterprise switching lines. Mix clusters of Fast Ethernet and Gigabit switches including Switch 4210, 4500, 5500, 4200G, 4500G, 4800G, and 5500G models.
The Switch 4210 family comes with 3Com's limited lifetime warranty covering the unit and power
supply. Fans in PWR units are also covered. Advanced Hardware Replacement with next business day shipment is available in most regions.
- Enterprise-class, entry-level and fully-managed Layer 2, 10/100 switching at an affordable price
- Wirespeed, non-blocking performance
- Fixed configuration, plug-and-play design means the switch work right out of the box
- IEEE 802.1X network access control offers standards-based security combined with RADIUS authentication
- Clustered stacking of up to 255 devices (Switch 4210, 4200G, 4500G, 5500 and 5500G)
- SFP ports support both Gigabit and Fast Ethernet fiber connections, making network migration easier
- RADIUS Authenticated Device Access (RADA) provides authentication of attached devices via MAC address for an additional level of endpoint security
- Common operating system shared across all 3Com enterprise switches, which simplifies set-up and ongoing management
- Energy-efficient, quiet, fan-less design is ideal for the desktop or wiring closet
- Rear-mounted console port for local management
