性能
| 主板元件 |
Micro ATX |
| 音频系统 |
CH HD |
内置输入/输出系统
| USB 2.0接口 |
3 |
| 串列ATA连接器数量 |
4 |
| 并行ATA连接器 |
1 |
| 软盘驱动器接口 |
Y |
| 前面板音频接头 |
Y |
内存参数
| 无错误检测和更正 |
Y |
| 內存插槽数量 |
4 |
| 最大内部存储 |
16 GB |
背板输出端口
| PS/2连接埠数量 |
1 |
| 耳机输出端口 |
1 |
| S/PDIF输出接口 |
Y |
| 麦克风/音频输入插孔 |
Y |
扩展槽
| 扩展插槽 |
1 x PCI-E X16\n2 x PCI-E X1\n1 x PCI |
另外
| 主板晶片 |
ATI Radeon Xpress 1250 |

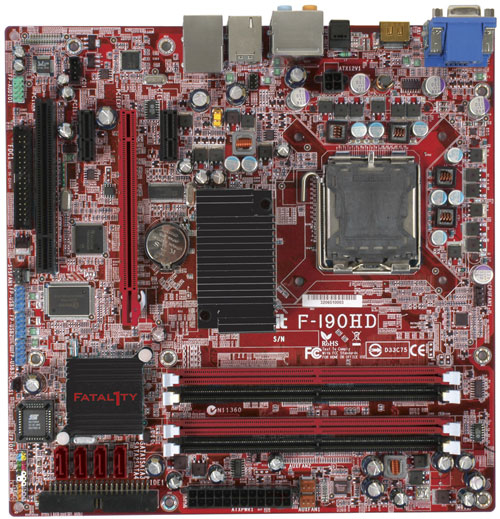

Fatal1ty F-I90HD LGA 775 / ATI® RX1250 / FSB1066 / HDMI™ 1080i / PCI-E X16 / Dual DDR2-800 / Gigabit Ethernet / 7.1 CH HD Audio / SATA 3G RAID
HDTV in True 1080i Resolution
Set up a fully fledged high definition home theater system with true digital HDTV in 1080i resolution. High Definition gaming offers some of the most thrilling and immersive moments in entertainment today.
Gaming & Vista Ready Graphics from ATI
The integrated ATI Radeon™ Xpress 1250-based graphics engine provides the 3D rendering power needed to accelerate the Windows Vista™ desktop and delivers a great gaming experience out of the box.
ATI Avivo™ Advanced Imaging and Video
The innovative Avivo™ display architecture provides users with visual quality that is second to none. Advanced scaling and color correction capabilities, along with increased precision through the entire display pipeline, ensure an optimal image on CRT monitors, LCD panels, and all other display devices.
Analog CRT/LCD monitor support
Multiple independent display support for simultaneous use of D-sub connections on CRT/LCD monitors and DVI/HDMI television sets.
For Enhanced Performance and Durability
Solid State Capacitors in the CPU and PWM areas significantly reduce heat and offer the most stable voltage regulation, thereby increasing performance while extending product life, even under the most stressful conditions.
Special PWM Layout with High Quality Components
Special PWM layout ensures a stable current to all parts of the motherboard. 100% Japanese made capacitors surround the PCB for enhanced stability, performance and durability.
Efficient and Noise Free Operation
North- and South Bridges are cooled separately by abit Engineered extra-wide and highly efficient heat sink and heat spreader combinations, creating a totally silent motherboard solution.
