视频
| 录像触发模式 |
Alarm, Manual, Motion detection, Time schedule |
| 视频录制模式 |
720p, 1080p |
| 视频压缩格式 |
H.264 |
| 视频分辨率 |
640 x 480, 704 x 576, 1080 x 720, 1920 x 1080 pixels |
| 抓图速度下的分辨率 |
640x480@30fps, 1280×720@30fps, 1920x1080@30fps |
| 最大视频分辨率 |
1920 x 1090 pixels |
| Maximum frame rate |
30 fps |
| 模拟信号系统 |
NTSC, PAL |
| 视频输入通道 |
16 channels |
端口 & 界面
| 继电器输出 |
4 |
| Number of HDMI outputs |
1 |
| USB2.0端口的数量 |
3 |
| 线路输出（RCA） |
1 |
| RS-485端口 |
1 |
| BNC输入端口 |
16 |
| 线路输入（RCA） |
4 |
| BNC输出端口 |
1 |
| VGA（D-SUB）输出端口 |
1 |
内容包装
| 包含电缆 |
AC, SATA, USB |
| 快速入门指南 |
Y |
联网
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
| 以太网接口类型 |
Gigabit Ethernet |
| 支持网络协议 |
TCP/IP, PPoE, DHCP, DNS, DDNS, NTP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS |
能量控制
| 功耗（一般操作） |
55 W |
| 交流电（AC）输入电压 |
100-240 V |
重量和尺寸
| 深度 |
450 mm |
| 宽度 |
470 mm |
| 高度 |
95 mm |
存储介质
| 支持硬盘驱动器接口 |
Serial ATA |
| 支持的硬盘数量 |
5 |
| 最大硬盘容量 |
4000 GB |
产品特点
| PTZ控制（平移/倾斜/缩放） |
Y |
| LP模式记录时间 |
291 h |
| HQ模式录音时间 |
37 h |
| 发声警报器 |
Y |
| 屏幕显示 （OSD）语言 |
DAN, DEU, DUT, ENG, POL, RUS, SWE |
认证标准
| 认证 |
CE, RoHS, REACH, C-Tick |
另外
| 产品色彩 |
Black, Chrome |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 运行温度范围（T - T） |
-10 - 55 °C |
16 HD-TVI, Full HD (1920x1080p), USB, BNC, HDMI, 4 x SATA HDD, 1 x eSATA , PAL/NTSC
Real time control in full 1080p HD

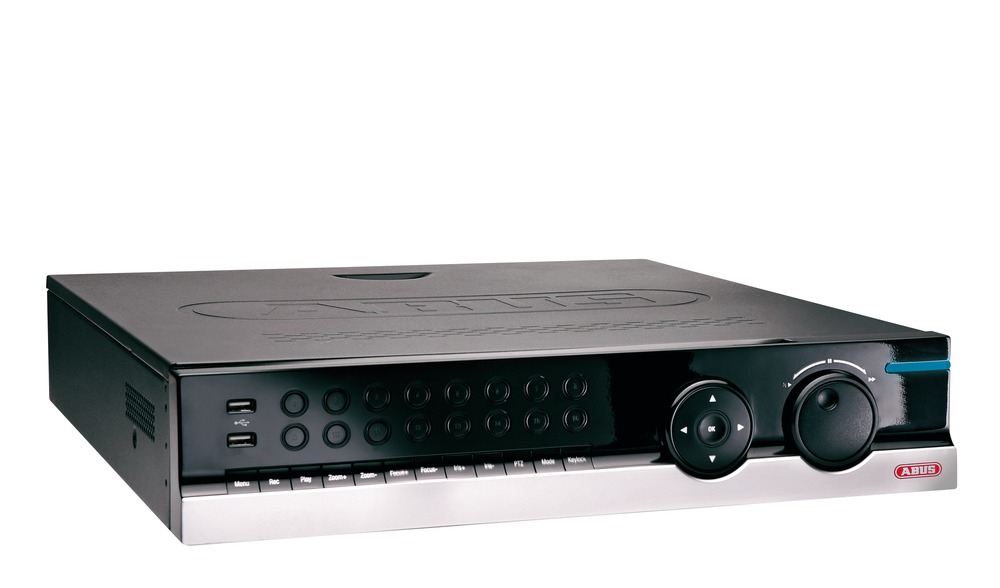

The 16-channel analogue HD video recorder allows the recording and management of up to 16 analogue HD cameras in full HD (1080p) or 16 analogue cameras in real time. The hybrid function allows combined operation of both analogue cameras and analogue HD cameras with the latest HD-TVI technology. This guarantees cost-effectiveness and return on investment, for example when converting and upgrading existing CCTV systems.
The recorder supports four SATA hard disk drives each with up to 4 TB for data storage.
Increased transmission range
A great advantage of HD-TVI technology is the line lengths across large distances that can be achieved without a reduction in quality. An HD-TVI signal (720p HD or 1080p full HD) can be transmitted in real time, for example, via a conventional RG59 cable (up to 300 metres) or RG6 cable (up to 500 metres). The range extends across both conventional analogue and HD-SDI devices. Both video and control signals such as PTZ and OSD controls are transmitted via a BNC cable.
Three analysis functions support video recordings with quick evaluation.
Smart playback: an area can be selected that only displays recordings in which movement occurs.
Trip wire: a line can be drawn that only displays recordings in which the line was crossed.
Intrusion detection: an area can be drawn that only displays recordings occurring within this area.
Mobile access via app from anywhere in the world
The network connection of the recorder provides global access to the video image data, which can be called up at any time from any place using the iDVR mobile app.
