处理器的特殊功能
| 英特尔® 增强暂停状态 |
Y |
| 英特尔®超线程技术 |
N |
| 英特尔® 防盗技术 |
N |
| 英特尔®直接输入/输出硬件辅助虚拟化技术 (Intel® VT-d) |
N |
| 英特尔® 双显示功能技术 |
N |
| 英特尔® 清晰视频技术 |
N |
| 英特尔®64 |
Y |
| 英特尔® 内线™ |
N |
| 英特尔®快速同步视频技术 |
N |
| Processor ARK ID |
28030 |
| 英特尔®虚拟化技术（VT -x） |
Y |
| 英特尔®可信执行技术 |
N |
| 英特尔®Turbo Boost技术 |
N |
| 英特尔® Flex内存访问 |
N |
| 英特尔® 快速内存访问 |
N |
| 英特尔®快速存储技术 |
N |
| 英特尔®清晰视频高清技术 |
N |
| 英特尔®无线显示(WiDi)技术 |
N |
| 英特尔®基于需求开关 |
N |
| 增强型英特尔®SpeedStep动态节能技术 |
Y |
| 英特尔® FDI技术 |
N |
| 英特尔®VT-x的扩展页表（EPT） |
Y |
| 英特尔®vPro™ 技术 |
N |
| 英特尔®MID清晰视频技术 |
N |
| 英特尔® 我的WiFi技术 |
N |
处理器
| 处理器运行模式 |
64-bit |
| 可选用的嵌入式选项 |
N |
| Number of Processing Die Transistors |
582 M |
| 处理器前端汇流总线 |
1066 MHz |
| 无冲突处理器 |
N |
| 处理器高速缓存类型 |
L2 |
| 实体位址扩充（PAE） |
32 bit |
| 热监测技术 |
Y |
| 处理器高速缓存 |
8 MB |
| 处理器安装数量 |
1 |
| 核心的处理器数量 |
4 |
| SMP（适用于表面安装的封装形式）处理器的最大数量 |
2 |
| 散热设计功耗 (TDP) |
80 W |
| 总线频率 |
6 |
| 处理器光刻 |
65 nm |
| 处理器封装尺寸 |
37.5 mm |
| 执行禁止位 |
Y |
| 总线类型 |
FSB |
| 处理器支持 ECC 功能 |
N |
| 外壳温度 |
66 °C |
| 处理器频率 |
1.6 GHz |
| FSB奇偶校验 |
Y |
内存参数
| 内存类型 |
DDR2-SDRAM |
| 错误更正代码 |
Y |
| 内置存储器 |
2 GB |
| 最大内部存储 |
16 GB |
设计
| 机箱板型 |
Rack (2U) |
| 光驱类型 |
DVD-ROM |
端口 & 界面
| 串口数量 |
2 |
| VGA（D-SUB）端口数量 |
2 |
| PS/2连接埠数量 |
2 |
另外
| Processing die size |
286 mm² |
| InTru™3D技术 |
N |
| 以太网路(RJ-45)连接接口数量 |
2 |
| 英特尔®AES新指令 |
N |

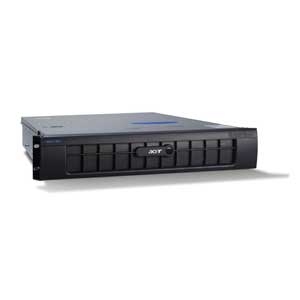

Altos R720, Rack 2U, Xeon E5310 1.6GHz/1066 MHz/8MB QC, 2x1GB FBD 667, ROMB + 128MB QC Cache, DVD/CDRW, 3x73GB 15k SAS HDD, EURO power cable, no rack rail kit, no KB, no mouse, EasyBuild 7.1, Value Pack
The Acer Altos R720 is a powerful 2U server for Web and network infrastructures. The R720 is designed with all the performance a fast paced, fast growing front-end and single-function application demands in a rack optimised server. The Acer Altos R720 allows you to serve more Web pages, handle more secure connections, support more e-mail users-all while reducing cost and saving space.
Increased performance
Flexible systems design methodologies allow you to configure the R720 to match your budget and application requirements. The performance features include dual high-speed Intel® Xeon™ processors, which support Intel® EM64T technology and Dual Core technology. This means your system is already compatible with forthcoming native 64-bit operating systems and applications. The R720 delivers maximum Acer Altos performance density of flexible stand-alone server and simplifies cabling and helps reduce behind-the-rack clutter. Serial attached SCSI technology boosts storage performance to 3Gb/s per channel. Quad channel full buffered memory boosts performance, and is expandable to 32GB for future investment protection. The new memory subsystem on the R720 supports memory mirroring and sparing. Flexible design methodologies mean that you can selected between PCI-X and PCI Express expansion slots.
Rack optimised
The AcerAltos R720 is a rack-optimised solution, which will integrate smoothly into any standards based computing environment. When you are adding an Altos R720 server to your existing network, you can do so with confidence, knowing that your server is built using proven Acer and Intel® technologies. Redundant power supplies and hot-swap redundant system fans are supported for rack system thermal airflow management and are optimised for rack server grade serviceability. Acer also offers a full range of Acer Altos rack equipment, which is designed for highest serviceability and optimum manageability.
Easy to install and manage
Acer Easybuild simplifies the installation and set-up, by providing an intuitive GUI Based process and by providing all relevant tools to set up your Acer Altos R720. Advanced Server Manager software makes comprehensive systems management easy.ASM provides performance management and critical event management services to network administrators. These components help you control IT expenses by making the R720 simple and efficient to manage.
