Adafruit 328 Lithium-Ion Polymer 2500mAh 3.7V rechargeable battery

Adafruit 328 Lithium-Ion Polymer 2500mAh 3.7V rechargeable battery

MPN: 328
发送方式:
交货来源:
德国
更新价格... 📣 询问价格 Не поставляется
运输成本:
От

凡购买和价格 (Advertising *)

顶部
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

技术特点

顶部

重量和尺寸

高度 8 mm
宽度 51 mm
重量 52 g
深度 65 mm

电池

包括电池的数量 1
电池电压 3.7 V

环境条件

储存温度范围 (T-T) -10 - 45 °C

另外

电池容量 10 Wh
产品色彩 Silver
电池性能 2500 mAh
Lithium Ion Polymer, 3.7v, 2500mAh Lithium ion polymer (also known as 'lipo' or 'lipoly') batteries are thin, light and powerful. The output ranges from 4.2V when completely charged to 3.7V. This battery has a capacity of 2500mAh for a total of about 10 Wh. If you need a smaller battery, we also have a 1200mAh model

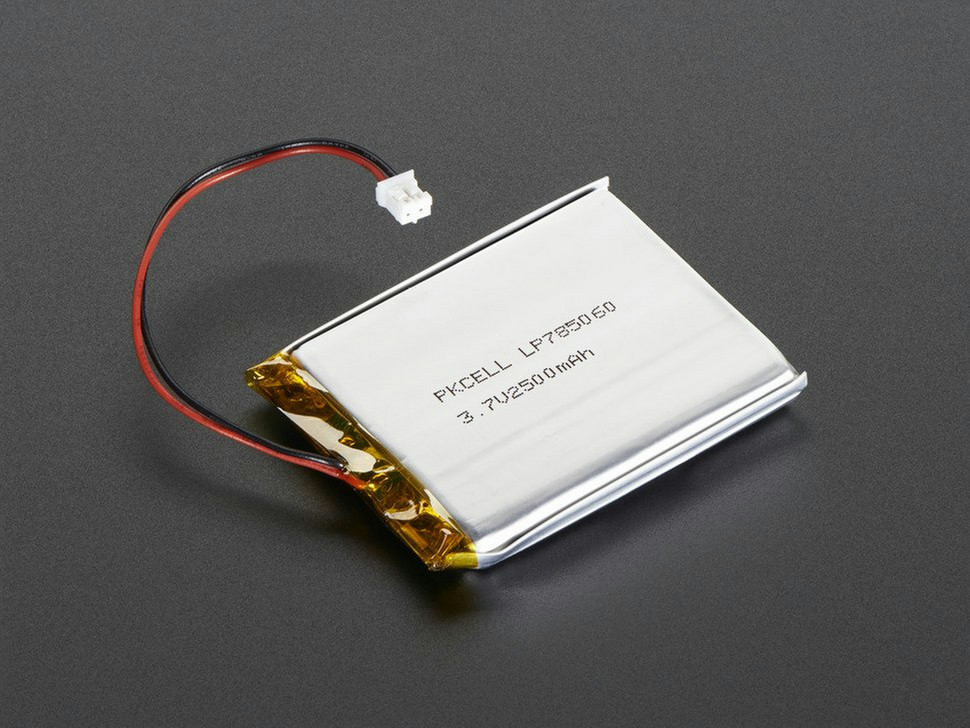

The batteries come pre-attached with a genuine 2-pin JST-PH connector as shown and include the necessary protection circuitry. Because they have a genuine JST connector, not a knock-off, the cable wont snag or get stuck in a matching JST jack, they click in and out smoothly.

The included protection circuitry keeps the battery voltage from going too high (over-charging) or low (over-use) which means that the battery will cut-out when completely dead at 3.0V. It will also protect against output shorts. However, even with this protection it is very important that you only use a LiIon/LiPoly constant-voltage/constant-current charger to recharge them and at a rate of 1200mA or less.
Like most lipos, the batteries we sell do not have thermistors built in. This is why we suggest charging at 1/2C or even less - 1200mA max in this case. Even 500mA is a good charge rate, which is how much you can get from a USB port.
