磁盘驱动器
可支持的存储驱动器数量 |
1.8, 2.5, 3.5, 5.25 " |
可支持的存储驱动器数量 |
5 |
存储介质类型 |
HDD |
技术细节
最大数据传输率 |
3 Gbit/s |
热插拔 |
Y |
芯片组 |
JMB393 |
环境条件
运行湿度范围(H-H) |
5 - 90% |
储存温度范围 (T-T) |
-40 - 85 °C |
储存相对湿度范围(H - H) |
5 - 95% |
重量和尺寸
深度 |
65 mm |
重量 |
189 g |
宽度 |
135 mm |
高度 |
25 mm |
端口 & 界面
USB 3.0(第 1代3.1)端口数量 |
1 |
DC-IN插口 |
Y |
另外
产品色彩 |
Black |
运行温度范围(T - T) |
0 - 70 °C |

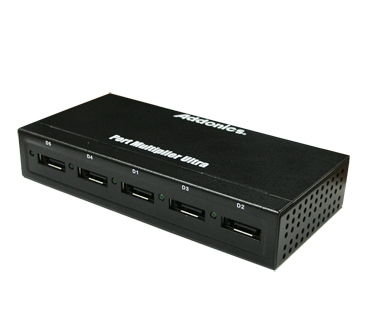

Port Multiplier Ultra - JMB393, 5xeSATA, USB 3.0, LEDs, 1.5/3.0Gbps, SATAI/II, 5V, 189g
The Port Multiplier (PM) Ultra is one of the most advanced external PMs in the market to connect as many as 5 eSATA storage devices to any computer via a single eSATA or USB 3.0 port. Built on the same ASIC deployed in our field proven 5-Port HPM-XU, the five hard drives attached to this PM Ultra can be set up to appear as five individual drives, just like connecting through a USB hub, or to appear as a single RAID volume. With this PM Ultra, you can also connect five SATA optical drives such as DVD-RRW or Blu-Ray drives to your system via eSATA connection and do simultaneous recording By attaching multiple Addonics RAID Tower to this PM Ultra, you can easily build yourself a large storage farm in excess of 100 TB. The storage device that are attached to the PM Ultra are easily shareable on any LAN by attaching to the Addonics latest NAS 4.0 adapter.
RAID configuration is set via a set of dip switches on the back of the unit or the included software utility. The drive and PM status are visually monitored by the LEDs on the front and back of the unit respectively or via the bundled monitoring software. Any drive failure or RAID error can be notified via audible alert from the on board buzzer and via email to an SMTP account. The hot swap capability of the PM Ultra also allows external hard drives to be conveniently attached or removed from the system on the fly without restarting the system. The PM Ultra is constructed in a heavy gauge metal housing with ventilation on the side for efficient heat dissipation and can be powered directly from USB port or an external power adapter. Comes with convenient mounting hole on the bottom and a small power adapter, the PM Ultra can be installed easily in various computing environment
