管理功能
| 支持多重播放 |
Y |
| 网上管理 |
Y |
| 支持服务质量（QoS） |
Y |
数据传输
| MAC 地址表 |
8000 entries |
| 支持数据传输率 |
10/100/1000 Mbps |
| 交换容量 |
8.8 Gbit/s |
| 母线数量 |
6 |
| VLAN 数量 |
255 |
其他功能
| 认证方法 |
IEEE 802.1x, RADIUS AAA |
| 安装端口 |
24 x 10/100 Mbps, 2 x 10/100/1000 Mbps, 2 x SFP |
| 远程管理 |
CLI |
| 液晶显示器功率 |
Y |
| 接受频率 |
50 - 60 Hz |
| 无线局域网连接 |
N |
联网
| 端口镜像 |
Y |
| 广播风暴控制 |
Y |
| 自动 MDI / MDI - X 检测功能 |
Y |
| 链路汇集 |
Y |
| 生成树协议 |
Y |
| 10G支持 |
N |
端口 & 界面
| SFP/SFP+端口数量 |
2 |
| 基本交换 RJ-45 以太网端口数量 |
26 |
| 光纤通道端口 |
2 |
| 千兆以太网(铜)端口数量 |
2 |
| 以太网铜缆技术 |
100BASE-TX, 1000BASE-T, 10BASE-T |
| 控制台端口 |
RS-232 |
| SFP模块插槽数量 |
1 |
24 x 10/100 Mbps, 2 x 10/100/1000 Base-T Mbps, 8.8 Gbps, DB-9, RS-232, 16 MB memory, PoE, 8000 Mac addresses, LEDs

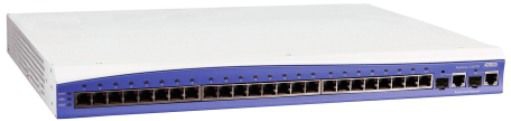

A fully managed Layer 2 Ethernet switch designed for cost-effective Local Area Network (LAN) switching. Ideal for new installations or network upgrades, these switches are perfect for business-class applications requiring Fast Ethernet.
- Low cost, fully managed, 24-port, 802.3af Power over Ethernet (PoE) switch
- Standards-based for ease of interoperability
- Class of Service (CoS) for prioritizing VoIP traffic
- Gigabit SFP/1000Base-T port for high-speed uplink or stacking
- Stack up to 16 switches for one larger switch and manage stack via a single IP address
- Non-blocking, up to 8.8 Gbps switching capacity
- 802.1D Spanning Tree and 802.1w Rapid Spanning Tree support
- Segment LAN with up to 255 VLANs (802.1Q tagged or port-based)
- Recognizable Command Line Interface (CLI) to reduce learning curve
- Intuitive Web-based Graphical User Interface (GUI) with step-by-step setup wizards
Features and Benefits
- Integral 24-port Power over Ethernet (PoE) switch for powering 802.3af-compliant devices like wireless access points (WAP), surviellence camera, or IP phones
- Two Gigabit SFP/1000Base-T ports for high-speed uplink or stacking
- Stack up to 16 switches for one larger switch and manage stack via a single IP address
- Non-blocking, up to 8.8 Gbps switching capacity
