管理功能
| 支持多重播放 |
Y |
| 系统事件日志 |
Y |
| 支持服务质量(QoS) |
Y |
| 网上管理 |
Y |
数据传输
| MAC 地址表 |
8000 entries |
| 支持数据传输率 |
10Mbit/s |
| 存储转发 |
Y |
| 最大数据传输率 |
0.1 Gbit/s |
联网
| 端口镜像 |
Y |
| 流量控制支持 |
Y |
| 全双工传输 |
Y |
| 动态主机配置协议服务器 |
Y |
| 广播风暴控制 |
Y |
| 自动 MDI / MDI - X 检测功能 |
Y |
| 速率限制 |
Y |
| 10G支持 |
N |
端口 & 界面
| 基本交换 RJ-45 以太网端口数量 |
24 |
| 以太网铜缆技术 |
100BASE-TX, 100BASE-T, 10BASE-T |
| 控制台端口 |
RS-232 |
其他功能
| 接受频率 |
50/60 Hz |
| 液晶显示器功率 |
Y |
| 无线局域网连接 |
N |
| 网路功能 |
Fast Ethernet |
能量控制
| 输入电压 |
100 - 240 V |
| 电源供应数量 |
1 |
ANS-24RV, Smart, Fast Ethernet, 24 x RJ-45, 8K, VLAN, MDI/MDI-X, 802.3x, 1.5 Mb, 2.14kg, Black/Blue

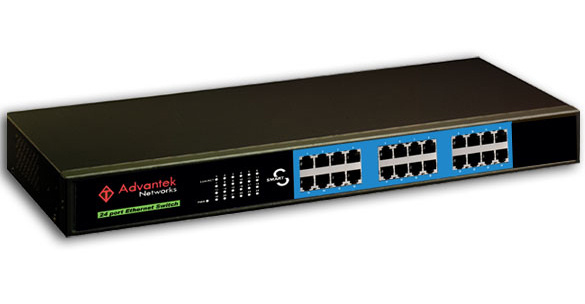

24-Port 10/100 Smart Switch w/ VLAN
Advantek Networks 24–port Fast Ethernet Switches are perfect for improving the performance of small to medium size networks. These switches satisfy the need for high-quality products at a very affordable price.
Our 24-port Fast Etherenet Switch is in 19” Rackmount design. It is targeted at workgroups, departmental or backbone computing environments at medium to large businesses. The aggregate bandwidth for this switch can reach up to 2Gbps. It can be placed near the core of the network to eliminate bottlenecks and improve the overall network throughout
Features:
- High Performance Network Switching with VLAN and Trunking Management;
- IEEE 802.3, 802.3u, 802.3x;
- N-way Auto Negotiation;
- Non-Blocking Design;
- Store-and-Forward Architecture;
- Extensive front-pannel diagnostic LEDs;
- Support Auto MDI/MDI-X;
- Support Full Wire Speed Forwarding and Filtering;
- Internal universal switching power supply.
