联网
接收机灵敏度 |
- 802.11b 11Mbps ≦ -90dBm\n- 802.11g 54Mbps ≦ -73dBm\n- 802.11n HT20 MCS7 ≦ -70dBm\n- 802.11n HT40 MCS7 ≦ -67dBm |
其他功能
闪存 |
8 MB |
内置存储器 |
32 MB |
接受频率 |
50 - 60 Hz |
输入电压 |
12 V |
网路功能 |
Fast Ethernet |
输入电流 |
1 A |
USB 端口数量 |
1 |
带宽 |
2.472 GHz |
xDSL connection |
N |
天线
天线接口类型 |
RP-SMA |
发射功率 |
19 - 30 dBmW |
天线增益水平(最大值) |
3 dBi |
天线数量 |
1 |
无线局域网的特点
调制 |
64-QAM, 16-QAM, QPSK, OFDM, BPSK |
WLAN的数据传输率(最大值) |
150 Mbit/s |
Wi-Fi标准 |
IEEE 802.11n |
无线局域网类型 |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
以太网LAN特性
以太网的数据传输率 |
10, 100 Mbit/s |
以太网LAN接口类型 |
Fast Ethernet |
另外
过滤 |
URL |
以太网路(RJ-45)连接接口数量 |
4 |
输出电源 |
30dBm |
以太网连接器 |
Y |

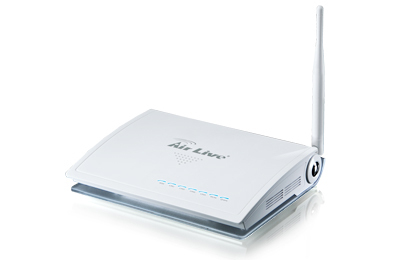

Air3G - Long Range Wireless-N PoE 3G Broadband Router, 1 x USB 2.0, WAN for ADSL/Cable, 802.11b/g/n
he Air3G is the latest AirLive AP router that follows the principles of maximization. It starts with earth shattering 1Watt output power* that enables the AP to cover up to area of 1km in diameter. It is equipped with both USB and WAN port to share 3G, ADSL, and cable modem Internet connections. Hotspot authentication function is provided for those who want to resell the Internet bandwidth. The passive PoE port allows installation of the Air3G far away from power source.
<b>1 AP Equals 9</b>
The Air3G is the first Wireless-N 3G router to provide 1Watt* output power. That means it can cover up to 9 times the area comparing with normal powered solutions. The Wireless-b/g/n radio can run at up to 150Mbps speed which is 3X faster than 11g solutions.
<b>Ultimate 3G and Broadband Sharing</b>
The Air3G comes with USB 2.0 port for sharing the Internet connection of 3G USB dongles. In addition, a WAN port is provided for sharing ADSL or Cable Modem connection. The remarkable WAN and 3G auto backup function will auto switch between WAN or 3G when one of the connections failed. This ensures uninterrupted Internet service for your home or office. Wireless Multi-mode functions can turn your Air3G instantly into AP, Wireless Client, Wireless Bridge, or Wireless Repeater.
<b>Hotspot Authentication</b>
The Air3G can turn into a simple Hotspot Gateway instantly. The Hotspot Authentication controls the Internet Access by username and password. It is perfect for Hotel, coffee shops, restaurant, or just to sell Internet Service to your neighbors. The high-power Wireless-b/g/n radio means you can provide service to much greater area and faster speed.
<b>AirLogic System Architecture</b>
Air3G software system is built upon the new AirLogic software architecture. The under laying system core is our legendary wireless engine that offers superior performance and rich set of functions. It features firmware recovery system, multi-operation wireless mode, Virtual AP function, bandwidth control, and over 100 other features that make AirLive wireless products famous in the industry. The AirLogic Web Interface integrates all these powerful functions into an extremely easy to use multi-language interface that can change language instantly at any page.
<b>Internet Service on Transportation</b>
With growing need to provide Internet service on public transportation, the Air3G is a perfect device for such purpose. With the optional CAR-100DC car adapter, you can easily provide Internet service on the car, bus, or train.
<b>Green AP Function</b>
At AirLive, we are conscious about our responsibility as a member of the beloved Planet Earth. That's why the Air3G is equipped with Green AP function to conserve the energy and enable users to set the schedule of the wireless service.
AirLive maximizes the value of Air3G in terms of wireless coverage, functions, and design. It is
designed from ground up to be the perfect Internet sharing device.
The CAR-100DC is a car adapter with DC Jack. It is an individual accessory for Air3G. With application of it, you can easily share Internet service with passengers on the car, bus, or other public transportation without any restriction of electrical power.
*Powered limited to 20dBm in EU and 23dBm in the U.S.
**This product does not come with 3G modem. It works with 3G USB dongle. Please check the 3G USB Support List for compatibility.
