数据传输
| 支持数据传输率 |
10/100 Mbps |
| 最大数据传输率 |
0.1 Gbit/s |
| 存储转发 |
Y |
其他功能
| 无线局域网连接 |
N |
| 安装端口 |
5 |
| 液晶显示器功率 |
Y |
| 网路功能 |
Ethernet, Fast Ethernet |
| 以太网的数据传输率 |
10, 100 Mbit/s |
端口 & 界面
| Express卡插槽 |
N |
| 基本交换 RJ-45 以太网端口数量 |
5 |
| 以太网铜缆技术 |
100BASE-T, 10BASE-T |
联网
| 自动 MDI / MDI - X 检测功能 |
Y |
| 流量控制支持 |
Y |
| 10G支持 |
N |
| 全双工传输 |
Y |
Ethernet Switch 5 port 10/100Mbps, Full- / Half-Duplex, IEEE 802.3 10Base-T, IEEE 802.3u 100Base-T, Flow Control, 5x RJ45, Auto MDI/MDI-X, Store & Forward
Experience the AirTies difference in your Switch applications, too

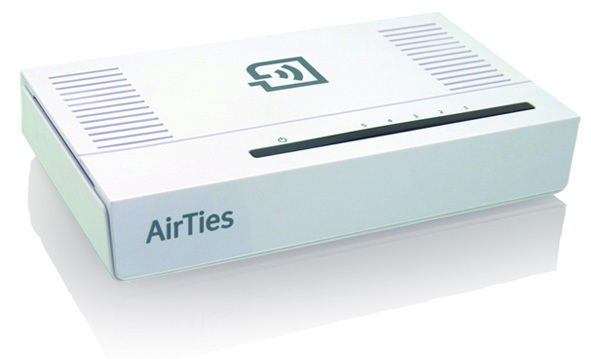

With the AirTies NSW-105 5-Port 10/100 Mbps Ethernet Switch, you can meet your networking needs and provide maximum performance, especially in the office. You can easily include it in network environments with heavy traffic and expand your network without having to make any changes to the existing infrastructure. Moreover, no configuration is needed: just plug it in and turn it on.
A perfect solution for corporate networks with its 100 Mbps Ethernet speed, the NSW-105 allows you to expand your network to include as many Ethernet compatible devices (computers, network printers, IP Cameras, etc.) as you want without needing to reconfigure them.
- With the Auto MDI/MDI-X feature, it automatically detects the connection type of the remote device and adjusts itself to work seamlessly without user intervention.
- Store and Forward feature ensures data integrity on your network, prevents packet loss and delay.
- Full- / Half-Duplex operating modes provide automatic speed configuration based on the speed (100Mbps or 10 Mbps) supported by the connected device.
- Back-Pressure support for Half-Duplex mode provides increased performance for even 10 Mbps connections.
- Uplink from any port.
- LED indicators: Power indicator and Link/Act indicators that also show transmission speed (Green for 100 Mbps, Orange for 10 Mbps).
- Robust against voltage fluctuations: Designed and developed to withstand wide voltage fluctuations.
- 7 /24 AirTies Call Center and Technical Support (and support by the AirTies R&D team when necessary).
- 3-year extended warranty.
