性能
| 频段 |
2.4/5 GHz |
| 扩频方法 |
DSSS |
| 5 GHz |
Y |
| 发射功率 |
23 dBmW |
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
| 调制 |
16-QAM, CCK, 64-QAM, OFDM, BPSK, DSSS, QPSK |
| 2.4 GHz |
Y |
天线
| 天线增益水平（最大值） |
5.8 dBi |
| 集成天线 |
Y |
| 天线数量 |
2 |
端口 & 界面
| 广域网接口 |
Ethernet (RJ-45) |
| DC-IN插口 |
Y |
另外
| 以太网路(RJ-45)连接接口数量 |
1 |
| 数据传输率（最大） |
300 Mbit/s |
2.4/5GHz, IEEE 802.11a/b/g/n, 300Mbps, Gigabit Ethernet, 255g, white

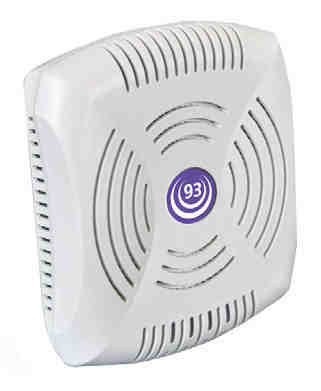

The multifunctional and affordable 90 series wireless access points (APs) deliver enterprise-grade Wi-Fi to low-density client environments in offices, hospitals, schools and retail stores. These high-performance 802.11n APs deliver wireless data rates up to 300 Mbps per radio and ensure peak performance by utilizing channel bonding, block acknowledgement and MIMO radios. Advanced antenna technology also increases RF signal range and reliability. The 93 series of APs features one dual-band 2.4-GHz or 5-GHz radio with 2x2 MIMO and two integrated omni-directional antennas. The 92 series feature the same radios with external antenna connectors.
<b>Best-in-class rf management</b>
All Alcatel-Lucent APs include Adaptive Radio Management technology, which is essential to creating the most reliable, highperformance WLANs. ARM manages the 2.4-GHz and 5-GHz radio bands to optimize Wi-Fi client performance and ensures that APs stay clear of RF interference.
The 90 series can be configured to provide part-time or dedicated air monitoring for spectrum analysis and wireless intrusion protection, VPN tunnels to extend remote locations to corporate resources, and wireless mesh connections where Ethernet drops are not available.
<b>Choose your operating mode</b>
The 90 series offers a choice of operating modes to meet your unique management and deployment requirements.
- Controller-managed mode: When managed by Alcatel-Lucent Mobility Controllers, 90 series APs offer centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic forwarding. Please refer to the Alcatel- Lucent Mobility Controller data sheets for more details.
- Alcatel-Lucent Instant mode: In Alcatel-Lucent Instant mode, a single AP is dynamically elected the Virtual Controller, which automatically distributes the network configuration to other Instant APs in the WLAN. Simply power-up one Instant AP, configure it over the air, and plug in the other APs – the entire process takes about five minutes.
For large installations, the Alcatel-Lucent Product Activation Service dramatically reduces deployment time by automating Alcatel-Lucent Instant provisioning, firmware upgrades and inventory management. APs are factory-shipped to your deployment site and configure themselves when powered up. If WLAN and network requirements change, a built-in migration path allows 90 series Instant APs to become part of a WLAN that is centrally managed by a Mobility Controller.
