管理功能
| 支持多重播放 |
Y |
| 支持服务质量（QoS） |
Y |
| 网上管理 |
Y |
| 支持管理信息基本原则 |
Y |
| 系统事件日志 |
Y |
数据传输
| MAC 地址表 |
16000 entries |
| 支持数据传输率 |
10/100/1000 Mbps |
| 吞吐量 |
13 Mpps |
| 交换容量 |
12.4 Gbit/s |
| 最大数据传输率 |
24.8 Gbit/s |
| VLAN 数量 |
4000 |
其他功能
| 认证方法 |
TACACS+, RADIUS |
| 电磁辐射 |
CE, FCC, VCCI, AS/NZS |
| 液晶显示器功率 |
Y |
| 网路功能 |
Fast/Gigabit Ethernet |
| 电源类型 |
AC |
| 等待时间 |
<4 μsec. |
| 连通的液晶显示器 |
Y |
| 无线局域网连接 |
N |
协议
| 切换协议 |
PVST, RSTP, STP, IPv4, IPv6 |
| 管理协议 |
SNMP, SMI, NTTP, HTML |
| 支持网络协议 |
DHCP, ARP |
| 数据链路协议 |
TFTP, FTP, SFTP, SCP |
联网
| 流量控制支持 |
Y |
| 动态主机配置协议客户 |
Y |
| 动态主机配置协议服务器 |
Y |
| 端口镜像 |
Y |
| 广播风暴控制 |
Y |
| IGMP侦听 |
Y |
| 自动 MDI / MDI - X 检测功能 |
Y |
| 速率限制 |
Y |
| 全双工传输 |
Y |
| 链路汇集 |
Y |
| IP路由 |
Y |
| 生成树协议 |
Y |
| 线头(HOL)阻塞 |
Y |
| 10G支持 |
N |
安全
| MAC（媒体存储控制）地址过滤 |
Y |
| 存取控制清单(ACL) |
Y |
| SSH / SSL支持 |
Y |
端口 & 界面
| 千兆以太网(铜)端口数量 |
2 |
| 基本交换 RJ-45 以太网端口数量 |
24 |
| 以太网铜缆技术 |
1000BASE-T, 1000BASE-TX |
OmniSwitch 6250 - Stackable Fast Ethernet LAN-switch 24.8 Gbps, 24 LAN ports, 17.40 W, 1.72 kg
The Alcatel-Lucent OmniSwitch™ 6250* is a new Value Layer 2+ Fast Ethernet Stackable LAN family of switches for both the enterprise and Ethernet access segments. Enterprise models address the small and medium-sized enterprise edge and branch office environments, while the Metro models address residential and business Ethernet access supplied by service providers.
With an optimized design for flexibility and scalability as well as low power consumption, the OmniSwitch 6250 Stackable Fast Ethernet Switch runs the field-proven Alcatel-Lucent Operating Software (AOS), providing an outstanding edge solution for highly available, self-protective, easily managed, eco-friendly networks.
The "M" models (8 and 24) are specifically built as an advanced Fast Ethernet CPE/MTU device. Secure, guaranteed, triple-play level of service is delivered to service provider customers through additional uplinks and software features such as Ethernet Services (VLAN stacking), VLAN translation, Ethernet OAM, private VLANs, IPMC VLANs. Combined with the Alcatel-Lucent 5620 Service Aware Manager (SAM) management platform; you have a powerful, easy-to-manage, cost effective, metro access triple-play Fast Ethernet CPE device.
The Alcatel-Lucent OmniSwitch 6250 family is an evolution of the current OmniStack™ 6200 Fast Ethernet LAN switch product family, embedding the latest technology and AOS innovations.
Solutions benefiting from the OmniSwitch 6250 family of switches are:
- Edge of small-to-mid-sized networks
- Branch office enterprise workgroups
- Residential/Metro Ethernet triple-play applications (M models)

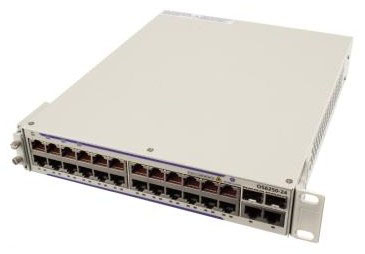

OS6250-24 Fast Ethernet chassis with AOS Enterprise software
Chassis includes 24 RJ-45 ports configurable to 10/100Base-T, 2 RJ-45/SFP combo ports configurable to be 10/100/1000Base-T or 100/1000Base-X and 2 dedicated 2.5G HDMI stacking ports. Ethernet SFP optical transceivers, HDMI stacking cables and backup power supply can be ordered separately.
- 24 RJ-45 ports configurable to 10/100 Base-T
- 2 RJ45/SFP gigabit combo ports
- 2 HDMI stacking ports
- Chipset capacity: 12.4 Gbps full duplex/24.8 Gbps aggregated
- Throughput:
- No stacking: 13 Mpps at 8.8 Gbps aggregated
- With stacking: 28 Mpps at 18.8 Gbps aggregated
- Stacking capacity: 5 Gbps full duplex/10 Gbps aggregated
- Powered by 42W AC (internal)
- External BPS available
- Power consumption: 17.4W
