认证标准
| 电磁辐射 |
FCC Class A, IC Class A |
| 安全 |
UL, CSA, TUV, IEC 825-1, CE |

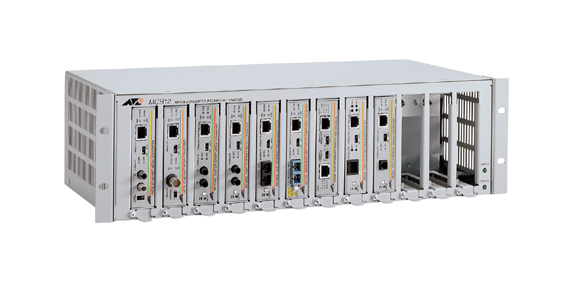

12-slot Media Conversion Rack-mount Chassis
Media Converter Flexibility
Supporting up to 12 Allied Telesis media
converters, the AT-MCR12 enables network
managers to use the MC1x family (10Mbps) or
MC10x family (100Mbps) media converters in
the same chassis.
Power Options
A preinstalled AT-PWR4 power supply powers
the AT-MCR12, eliminating the need for multiple
power connections. Allied Telesis also offers an
optional hot swappable power supply to
eliminate downtime on the network.The unit
saves space in the wiring closet and minimizes
the number of power connections required.
Single-unit media converters can be removed
from the AT-MCR12 and deployed individually in
order to accommodate network modifications.
By incorporating a backplane with 12 different
power entry modules integrated with the
printed circuit board, power is equally
distributed among all media converters whether
using one or two power supplies.
Rack-mount Design
Designed with a simple mounting system, each
individual media converter is plugged into the
back plane and secured with the included
mounting rail.
The rack-mount chassis includes two status
LEDs on the front panel indicating power
status.The top LED is titled PWR A and the
bottom PWR B.The AT-PWR4 power supply in
the back panel has one LED for power.When a
redundant power supply is installed, a second
LED is visible.
The AT-MCR12 is configured with one of the
following power cords to meet regional
requirements for North America, Continental
Europe, or the United Kingdom.
