数据传输
| MAC 地址表 |
16000 entries |
| 交换容量 |
48 Gbit/s |
| 最大数据传输率 |
96 Gbit/s |
| 吞吐量 |
71.424 Mpps |
性能
| 处理器频率 |
200 MHz |
| 内存类型 |
RAM, Flash |
| 内置存储器 |
128 MB |
| 闪存 |
16 MB |
端口 & 界面
| SFP/SFP+端口数量 |
4 |
| 基本交换 RJ-45 以太网端口数量 |
24 |
| 千兆以太网(铜)端口数量 |
24 |
| Combo SFP 端口数量 |
4 |
安全
| 存取控制清单(ACL) |
Y |
| MAC(媒体存储控制)地址过滤 |
Y |
其他功能
| 网路功能 |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1d, IEEE 802.3ac, IEEE 802.3x |
| 电磁辐射 |
FCC Part 15 Class A, EN55022 Class A, EN55024 Immunity, VCCI Class A, C-TICK, EN61000-3-2, EN61000-3-3, AS/NZS 3548 |
| 管理平台 |
Web, Telnet, CLI, SNMP |
设计
| 安全 |
UL 60950-1, CSA C22.2 No. 60950-1-03, EN60950-1, EN60825-2 (TUV) |

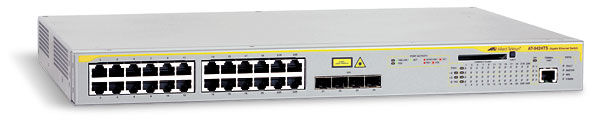

AT-9424Ts, 10/100/1000T x 24 ports with 4 combo SFP bays and optional stacking ports
The 9424Ts is a Gigabit Ethernet Layer 3 switch with stacking capabilities and four SFP bays. It comes in a 1 RU form factor and provides rich QoS and IGMP capabilities for voice and video enabled networks. Traffic flows freely between switches with 48Gbps stacking bandwidth.
The 9424Ts also offers an extensive set of standards-based features to ensure ease of management and integration into existing networks. Use the 9424Ts as an affordable complement to 9400S/XP switch models to provide 10GbE connectivity to the core.
