性能
处理器频率 |
266 MHz |
内置存储器 |
32 MB |
闪存 |
16 MB |
以太网LAN特性
布线技术 |
10/100Base-T(X) |
以太网的数据传输率 |
10, 100 Mbit/s |
安全
支持虚拟专用网 |
IPsec |
虚拟专用网信道数量 |
50 |
防火墙 |
Y |
MAC(媒体存储控制)地址过滤 |
Y |
其他功能
最大数据传输率 |
0.1 Gbit/s |
数据传输速度 |
10 Mbit/s |
管理功能
通用即插即用(UPnP) |
Y |
支持服务质量(QoS) |
Y |
网上管理 |
Y |
协议
动态主机配置协议客户 |
Y |
动态主机配置协议服务器 |
Y |
支持网络协议 |
SNMP, HTTP |
另外
以太网连接器 |
Y |
开/关切换钮 |
Y |
连接方式 |
Wired |
以太网路(RJ-45)连接接口数量 |
4 |
1 x WAN, 1 x PICs, 4 x LAN, 100-240V

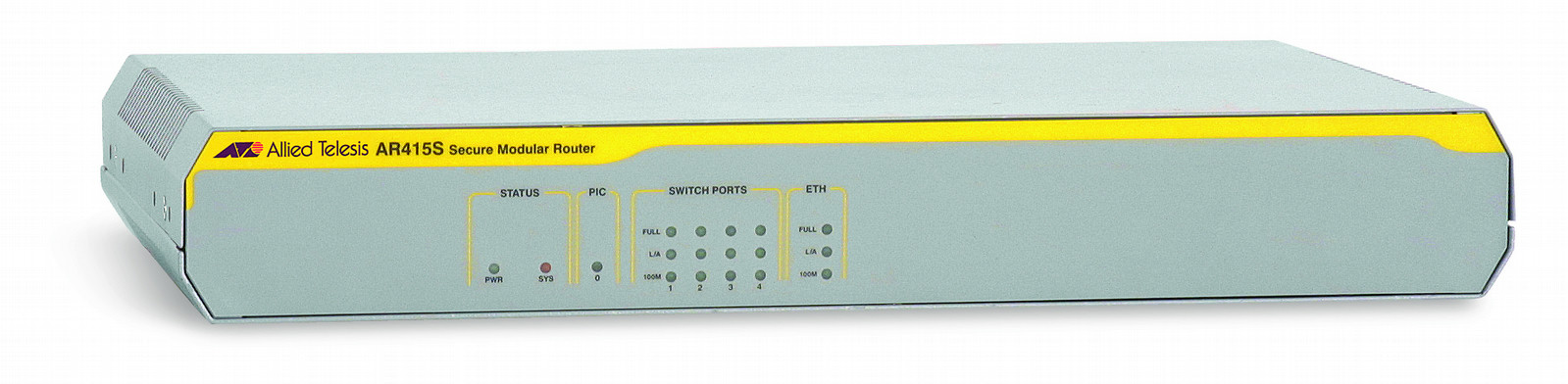

The AT-AR415S uses a variety of high-speed WAN access technologies to deliver fast, reliable and secure Internet and network access for small and medium-sized businesses. Packaged in a compact one-rack unit chassis, this versatile router provides five 10/100 Fast Ethernet interfaces and supports a variety of Port Interface Cards (PICs).
For the WAN network, the AT-AR415S features one 10/100Mbps Ethernet Port. Also offered is an asynchronous port and four Layer 2 switched LAN ports that are reconfigurable as a DMZ.
- 1 x 10/100 WAN interfaces
- 1 x Port Interface Card (PIC) bay
- 10/100T x 4 switched LAN ports
- 1 x Asynchronous port
- DMZ port: configurable on any of the WAN/LAN ports
- 802.1x
- Up to 50 concurrent IPSEC tunnels
- Stateful Inspection Firewall
- NAT-T
- Authentication: RADIUS, TACACS, MD5, PAP, CHAP
- Encryption: AES, DES, 3DES
- CLI management
- Web based GUI
- IP QoS
- SNMPv3
- OSPFv1 and v2
- RIPv1 and v2
- BGP-4 (Optional)
- GRE
- IPv6 - (Optional)
- VRRP
- IGMPv2
- RIPng - Optional
