管理功能
| 支持多重播放 |
Y |
| 网上管理 |
Y |
| 支持服务质量（QoS） |
Y |
数据传输
| MAC 地址表 |
8000 entries |
| 交换容量 |
96 Gbit/s |
| 吞吐量 |
71.42 Mpps |
联网
| 端口镜像 |
Y |
| VLAN支持 |
Y |
| IGMP侦听 |
Y |
| 速率限制 |
Y |
| 流量控制支持 |
Y |
| 动态主机配置协议客户 |
Y |
| 动态主机配置协议服务器 |
Y |
| 10G支持 |
N |
| 全双工传输 |
Y |
以太网电源（PoE）
| 以太网（PoE）供电总功率概算 |
370 W |
| 以太网供电（PoE+）端口数量 |
24 |
| 支持以太网（PoE） |
Y |
端口 & 界面
| 基本交换 RJ-45 以太网端口数量 |
24 |
| 光纤通道端口 |
4 |
| DC-IN插口 |
Y |
| 基本交换 RJ-45 以太网端口类型 |
Gigabit Ethernet (10/100/1000) |
| 以太网铜缆技术 |
1000BASE-T, 100BASE-T, 10BASE-T |
| 控制台端口 |
RJ-45 |
| 千兆以太网(铜)端口数量 |
24 |
| Combo SFP 端口数量 |
4 |
性能
| 程序包缓冲区内存 |
1 MB |
| 内置存储器 |
64 MB |
| 闪存 |
16 MB |
24 x RJ-45, POE, 4 x SFP, VLAN, 96Gbps, 71.42Mpps, US power cord

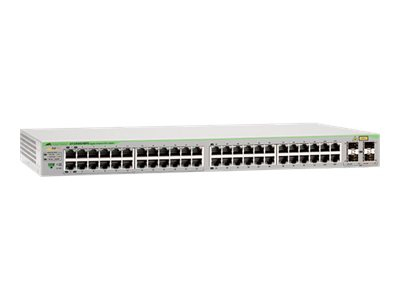

The Allied Telesis AT-GS950/48PS Gigabit Ethernet WebSmart switch features 48 10/100/1000T ports and four SFP combo ports, delivering up to 30 Watts per port (PoE+) to support video surveillance and security cameras, wireless access points, IP phones and other PoE powered devices. The PoE option eliminates the need for power rewiring and minimizes the clutter of power supplies and adapters in awkward places. Thanks to its compact size, the AT-GS950/48PS is ideal for the edge of SMB businesses, classrooms, larger retail stores, healthcare clinics and spas.
The AT-GS950/48PS provides managed features that are ideal for simple Quality of Service (QoS) applications, as well as basic monitoring tools to improve network performance. WebSmart functions provide QoS features suitable for multimedia applications. Using the web-based interface, network administrators can set up 802.1Q VLANs to segregate traffic, QoS to prioritize mission-critical data such as voice or video packets, and link aggregation to create traffic pipelines. The AT-GS950/48PS also provides network monitoring tools such as port mirroring and basic port statistics. Remote management enables simple monitoring from anywhere.
